The photocontrol JL-235CZ is applicable to control the street lighting, garden lighting, passage lighting and doorway lighting automatically in accordance with the ambient natural lighting level, and / or the remote system.
This product consists a Zigbee communication module to allow its remoted with a smart IoT management system.

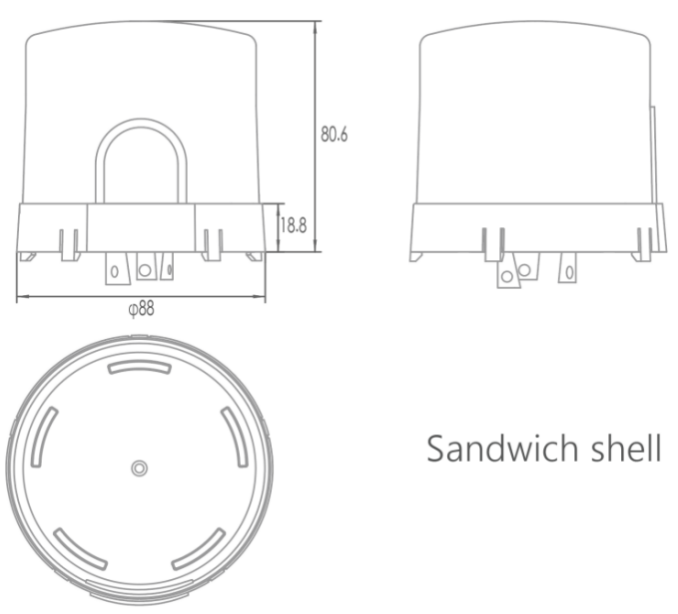

Product size
Product Features
ANSI C136.10 Twist-lock
Fail-On Mode
Time Delay 5-20s
Multi-Volts Available
Surge Arrester Built-in
IR-Filtered Phototransistor
Model No. | JL-235CZ |
Rated Voltage | 120~277VAC |
Applicable Voltage Range | 105~305VAC |
Rated Frequency | 50/60Hz |
Wireless Communication （down） | Zigbee |
Spectral Acquisition Range | 350~1100nm ; Peak wavelength：590nm |
Rated Loading | 1000W Tungsten, 1000VA Ballast 8A e-Ballast @120VAC/5A e-Ballast @208-277VAC |
Power Consumption | 2.4W Max. |
Operate Levels | Turn-On＜100Lx，Turn-Off＞150Lx / per client request |
Ambient Temperature | -40°C ~ +70°C |
Related Humidity | 96% |
Fail Mode | Fail-On |
Shell Material | PC+PC |
Optional High Protection | Double Shell |
Surge protection level | 6KV/3KA |
IP level | IP65 / IP67 |
Factory settings | Remote control+Adaptive mode |
Certifications |  |
