JL-245CG photocontrol can apply to independent control application or system control application, such as roads, exhibitions, schools, shopping malls, supermarkets, factories, parks and so on.
This product consists a LTE-Cat1 wireless communication module to allow its remoted with a smart IoT management system.

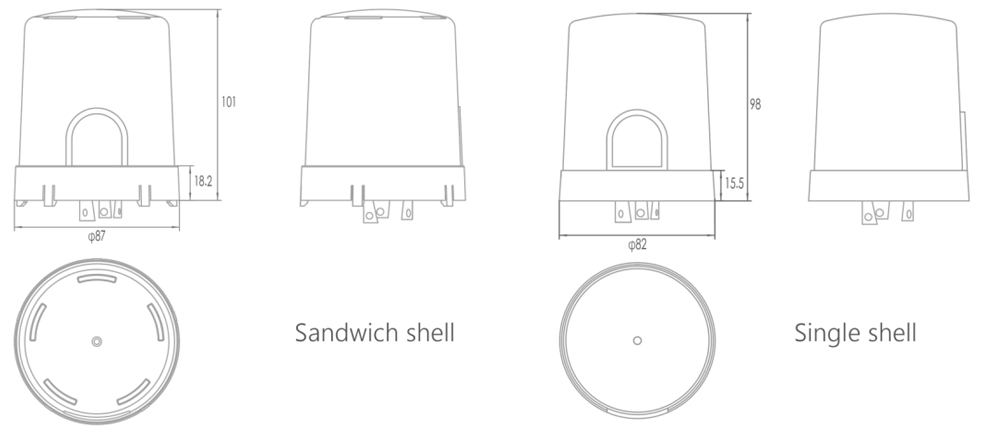

Product size
Product Features
ANSI C136.41 Twist-lock
0~10V Dimming
Surge protection level: 6KV/3KA differential mode
Sandwich cover for Long Life
Multi-Volts Application
IP67 Ready
IR-filtered Phototransistor
Model No. | JL-245CG |
Rated Voltage | 120~277VAC |
Applicable Voltage Range | 105~305VAC |
Rated Frequency | 50/60Hz |
Dimming Output | 0~10VDC |
Wireless Communication（up） | LTE-Cat1 |
Wireless Communicatio（down） | LTE-Cat1 |
Spectral Acquisition Range | 350~1100nm；Peak wavelength 590nm |
Rated Loading | 1000W Tungsten ,1000VA Ballast , 8A@120VAC/5A@208-277VAC e-Ballast |
Operate Levels | Turn-On＜100Lx，Turn-Off＞150Lx / per client request |
Power Consumption | 1.2W static，2.4W dynamic |
Ambient Temperature | -40℃~70℃ |
Related Humidity | 96% |
Fail Mode | Fail-On |
Shell material | PC |
Surge protection level | 6KV/3KA differential mode |
IP level | IP67 |
Factory Settings | Remote control+Adaptive mode |
Certifications |  |
Criterion | IEC61000-4-5;IEC61000-4-2;IEC61000-4-3; IEC61000-4-6;GB/T 17743-2017;IEC61000-4-4; IEC61000-4-11;IEC61000-3-2;GB/T2423.10-2008;UL94-V0; |
