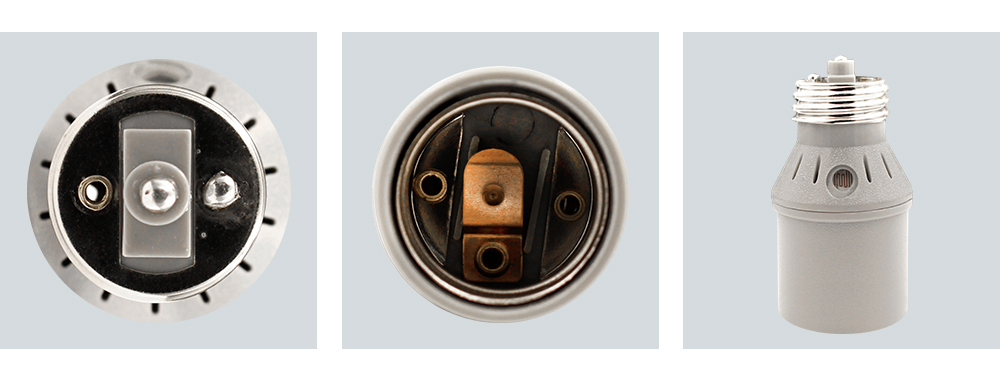

The 120V Dusk to Dawn Bulb Adapter for led outdoor lighting JL-301/311 series is applicable to control the Outdoor Lighting, Garden Lighting, Passage Lighting and Doorway Lighting Automatically in accordance with the ambient natural lighting level.
JL - 301 /311 Dusk to Dawn Bulb Socket Sensor has been approved by both UL companies in the United States UL and CUL column name, file number for E346727.
| Model | JL-301A |
Rated Voltage | 120VAC, 50/60Hz |
Rated Loading | 150W Tungsten |
| Power Consumption | Max 1.5W |
On/Off Levels | 15Lx （identical degree of illumination） |
Ambient Temperature | -40℃ ~ +70℃ |
| Related Humidity | 99% |
| Body Meas. | 69×Φ37mm |
Lamp cap & holder | E26/E27 |
Approx. Weight | 32.5g |
It is normal for the Photocell Bulb Socket to take several minutes to turn off when first installed.
To test “turn on” during daytime, cover its eye with sliding the metal strip mounted.
Do not cover with finger because light traveling through fingers may be great enough to keep the switch open.
Test will take approximately 2 minutes.
It is normal for the Dusk to Dawn Switch take several minutes to turn off when first installed.
To test “turn on” during daytime, cover its eye with sliding the metal strip mounted.
Do not cover with finger because light traveling through fingers may be great enough to keep the switch open.
Test will take approximately 2 minutes.
