JL-240-Nema-7-Pin-Twist-Lock-Photocell-Receptacle-Manufacturer

Ordering Information

JL-240X - **A - ***16G - ****06- *****R- ******L3

*:Model Number;

**:Low Voltage Contact Arrangement

A=All Pads offered (4 pads)

B=Binary offered (2 pads)

***:Lead Guage & Grade

16=AWG#16, AWM1015

14=AWG#14, AWM1015

16G=AWG#16, AWM3321

14G=AWG#14, AWM3321

****:Lead Length in inches

*****:Rear Cover: (IP6x purpose)

R=Rear Cover included for IP65 protection (with equal or higher IP control)

S=Rear Cover sealed for IP66 protection (with equal or higher IP control)

******:Wall mounting Bracket

L2=Aluminum 1.8~2.0mm

L3=Aluminum 2.8~3.0mm

Product Summary

All the JL-240 series nema 7 pin twist lock photocell receptacle were designed for the Street LED luminaires those intended to have an ANSI C136.10-2006 receptacle to fit a twist-lock photocontrol. This series conform newly published ANSI C136.41-2013 to allow a LED lamp multi-controlled through the receptacle.

This series offers 2 or 4 gold-plated low voltage pads on the top surface to fit photocontrol has ANSI C136.41 conforming spring contacts, and offers male quick connectors at rear back for signal connection.

This series also offers 360 degree rotation limiting feature to conform ANSI C136.10 requirements.

Both JL-240X and JL-240Y have been recognized, and JL-200Z14 has been listed by UL to applicable US and Canadian safety standards, under their file E188110, Vol.1 & Vol.2.


Technical Data

ANSI C 136.41 Nema 7 Pin Twist Lock Photocell Receptacle

Product Features

-ANSI C136.41-2013 to allow a LED lamp multi-controlled through the
receptacle.
-Offers 2 or 4 gold-plated low voltage pads on the top
surface to fit photocontrol has ANSI C136.41

conforming spring contacts,
-Offers male quick connectors at rear back for signal
connection.
-Listed by UL to applicable US and Canadian safety standards,
under their file
E188110, Vol.1 & Vol.2.

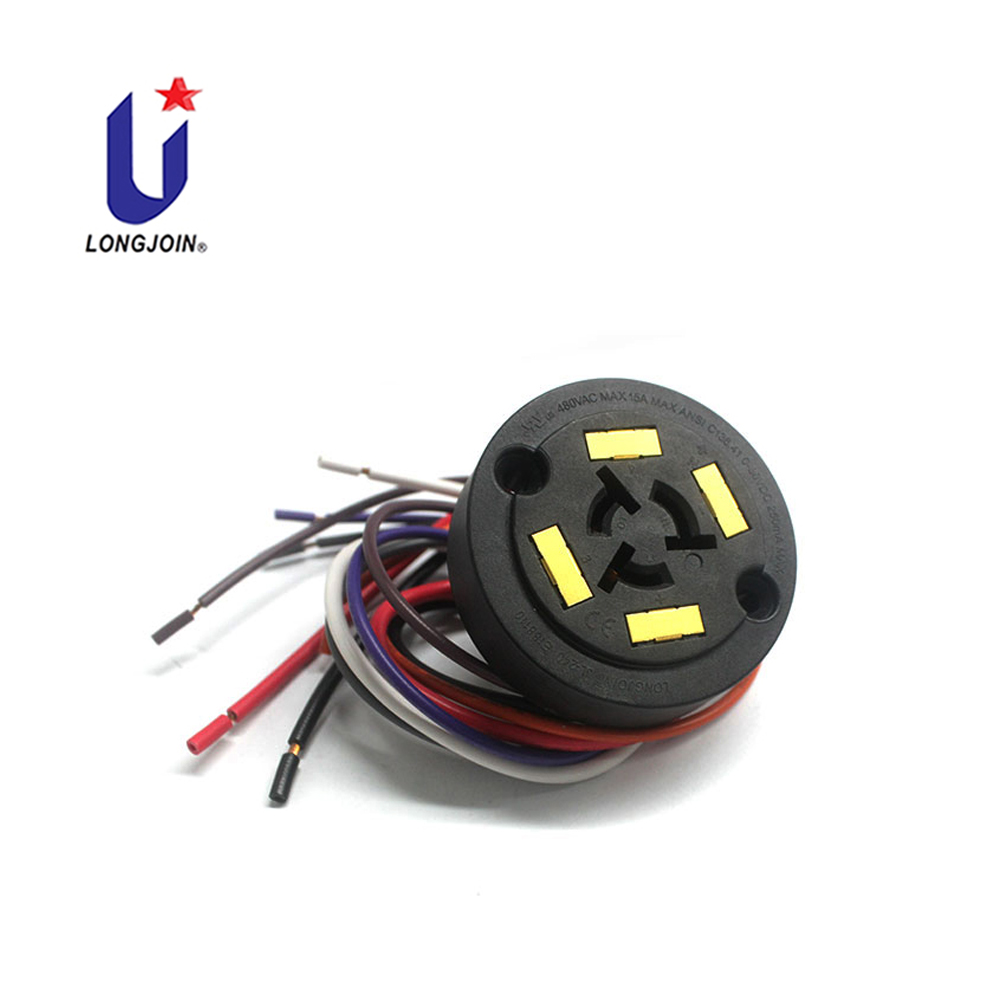

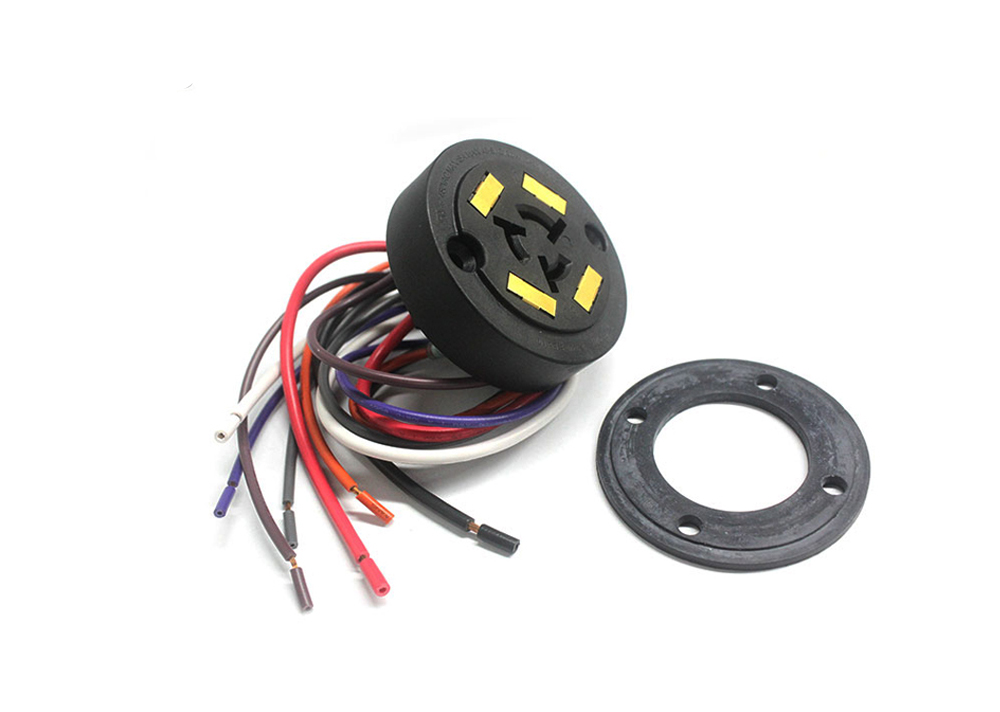

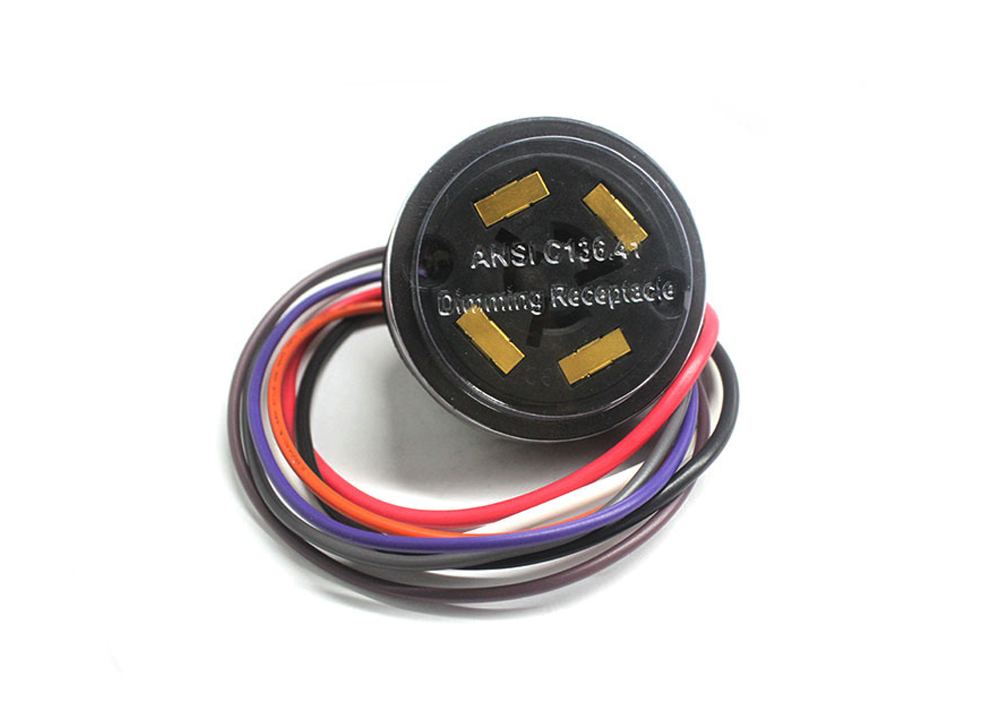

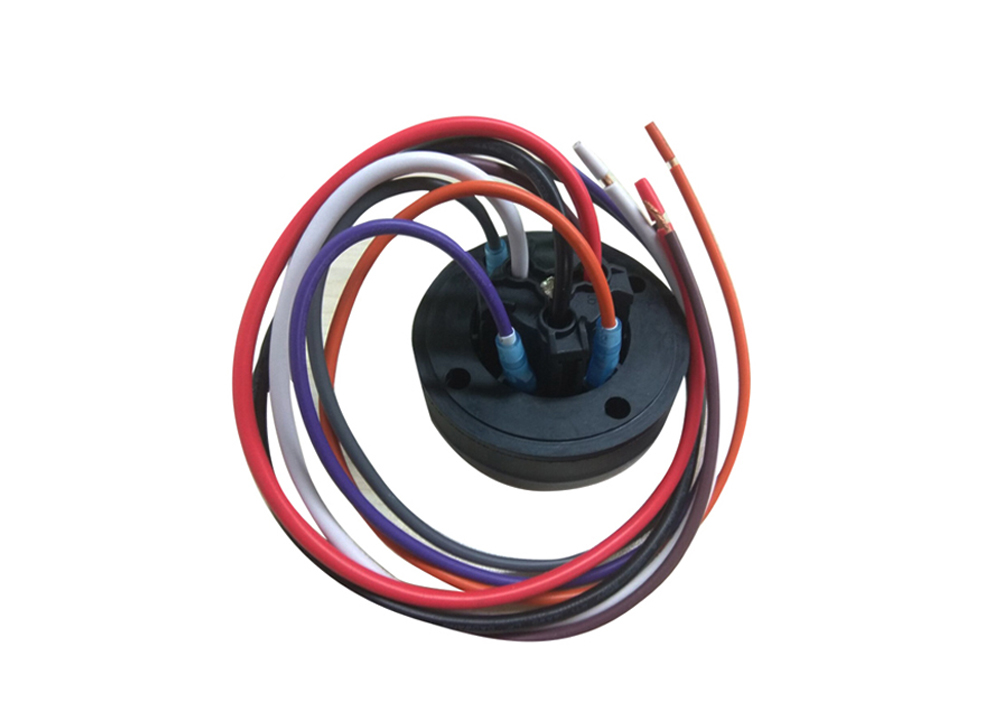

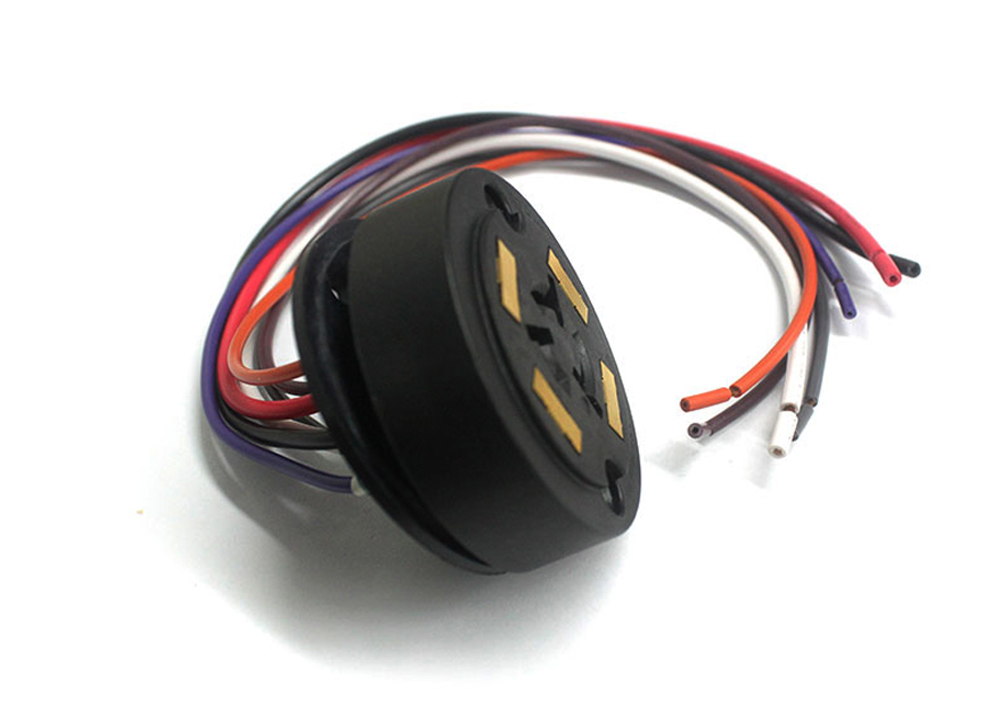

Nema 7 Pin Photocell Receptacle Display









Model No.JL-240XJL-240YJL-240Z14
Applicable Volt Range0~480VAC
Rated Frequency50/60Hz
Power LoadingAWG#14: 15Amp max. / AWG#16: 10Amp max.
Optional Signal LoadingAWG#18: 30VDC, 0.25Amp max.
Ambient Temperature-40℃ ~ +70℃
Overall Dimensions (mm)65Dia.x 4065Dia.x 67
AccessoryRear Cover● R option● R option
Spring Holder--

Wall mount

Back Cover

--
Lock Nut--
Wall Mount Bracket--

30x(70+130)

Leads6” Min. (See Ordering Information)


Longjoin Photocells have multi-certifications:UL/CE/LVD

You can Click the Picture to Check the Certification Page to Confirm:


Installation

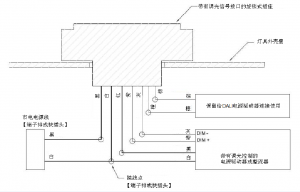

Disconnect power; wire the receptacle according to the diagram below. An arrow indicating NORTH on the top of the receptacle is used to assist correct direction. Push the photocontrol on and turn it clockwise to lock into the receptacle.

Adjust the receptacle position if necessary.

JL-240Y series supports tool-free rotation.

JL-240Z series supports Wall-mount and rotation.


Initial Testing

It is normal for the SWITCH to take several minutes to turn off when first installed.

To test “turn on” during daytime, cover its eye with sliding the metal strip mounted.

Do not cover with finger because light traveling through fingers may be great enough to keep the switch open.

Test will take approximately 2 minutes.
