Zhaga JL-700X Zhaga Book-18 Latch Socket of LONGJOIN

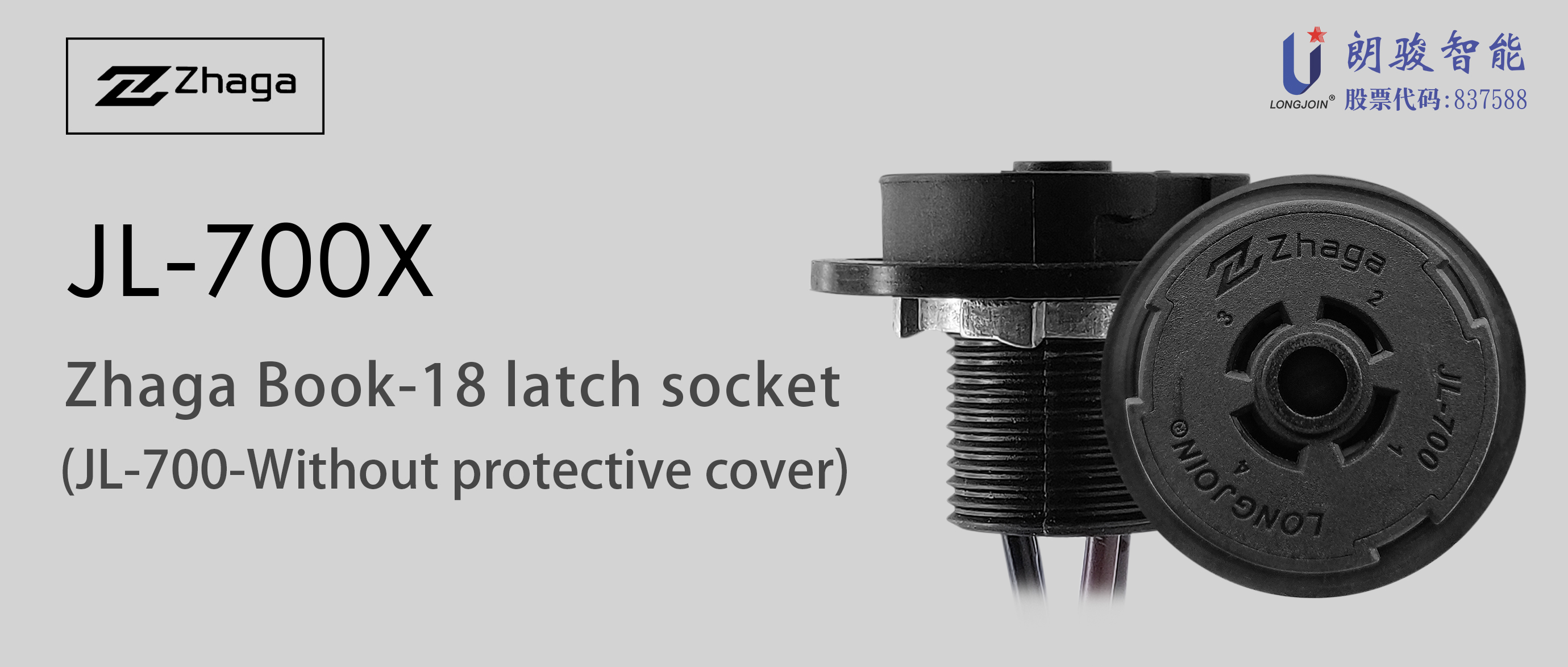

JL-700X Zhaga Book-18 latch socket of JL-7 series (conventional 700 does not include protective cover)


Product introduction

JL-700X latch socket meets the requirements of Zhaga Book18 standard interface (Z-LEX-R, Z-LEX-C), which is a conventional JL-700 latch socket without protective cover. The product has passed the relevant certification, which is convenient for the integrated installation of lamps such as road lighting, regional lighting or commercial and residential lighting, such as street lamps, industrial and mining lamps, corridor lamps, wall lamps, etc.



Product Features
*Conform to Zhaga Book18 interface standard
*With the controller, it can reach IP66 waterproof grade, and single socket can reach IP20 grade
*Integrated single gasket can seal lamps and modules to minimize assembly time
*Small size, suitable for installation to various lamps
*Flexible installation position, which can be installed at the top/bottom/side of the lamp
*Support hot plug
*Contact rating: 1.5A, 24VDC (maximum 30VDC)
*Operating temperature range of - 40 ℃~70 ℃
* φ More than 40~80 models can be selected to meet the design size requirements of various controllers


Line color definition

-Port 1 (brown): 24VDC
-Port 2 (gray): DALI -/GND
-Port 3 (blue): DALI+
-Port 4 (black): reserved I/O

*Optional version

-Port 1 (red): 24VDC
-Port 2 (black): DALI -/GND
-Port 3 (purple): DALI+
-Port 4 (yellow): reserved I/O
