JL-700 zhaga book-18 latch socket (pre wired waterproof version) of LONG-JOIN intelligent JL-7 series

JL-700 zhaga book-18 latch socket (pre wired waterproof version)

Jl-700 zhaga book-18 latch socket produced by LONG-JOIN intelligent meets the standard interface requirements of zhaga Book 18 (Z-LEX-R, Z-LEX-C), and has passed the relevant certification, which is convenient for the development and integrated installation of lamps and lanterns for roads, areas or commercial and residential lighting, such as street lamps, industrial and mining lamps, corridor lamps and wall lamps.

Feature introduction

*It meets the standard interface requirements of zhaga Book 18 and has obtained DEKRA quality inspection certification.
*With the light controller, it can reach the waterproof level of IP66, and the single socket can reach the waterproof level of IP20.
*The integrated single gasket can seal the lamps and modules to minimize the assembly time.
*Small size, suitable for more lamps.
*Flexible installation position, which can be installed at various positions such as the top / bottom / side of the lamp.
*Support hot plug.
*Contact rating: 1.5A, 24VDC (MAX 30VDC).
*-Operating temperature range of 40~70 ℃.
* φ More than 40~80 models are available to meet the design size requirements of various light controllers.

Product Parameters

Line color definition

*Default version
Port 1 (brown): 24VDC
Port 2 (gray): DALI-/GND
Port 3 (blue): DALI+
Port 4 (black): Reserved I/O

*Optional version

Port 1 (red): 24VDC
Port 2 (black): DALI-/GND
Port 3 (purple): DALI+
Port 4 (yellow): Reserved I/O
Line color definition

*Default version

Port 1 (brown): 24VDC
Port 2 (gray): DALI-/GND
Port 3 (blue): DALI+
Port 4 (black): Reserved I/O

*Optional version

Port 1 (red): 24VDC
Port 2 (black): DALI-/GND
Port 3 (purple): DALI+
Port 4 (yellow): Reserved I/O

Product Structure

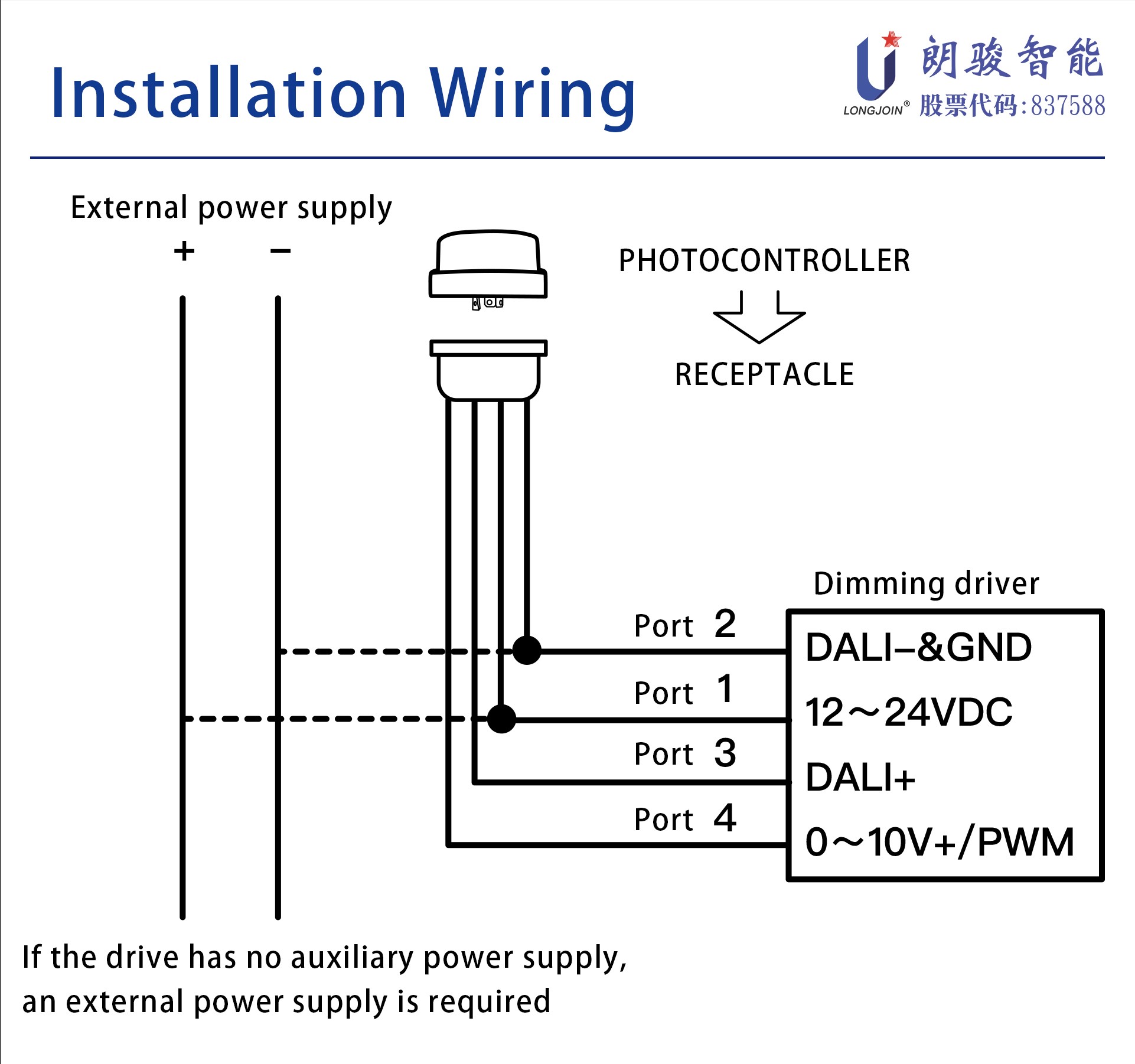

Installation Instructions
