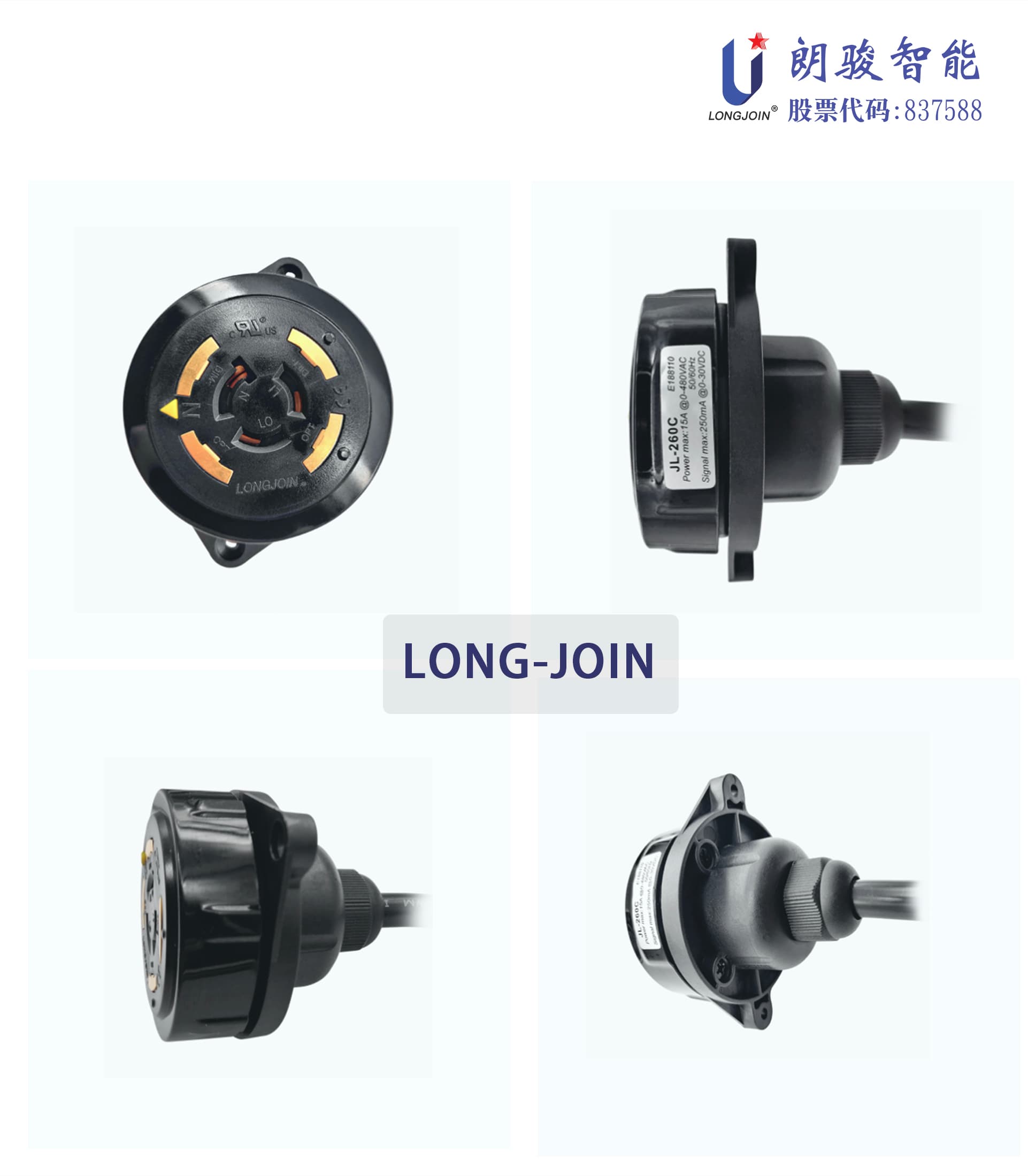

Different Position of Pole Light NEMA Street Light Receptacle JL-260C

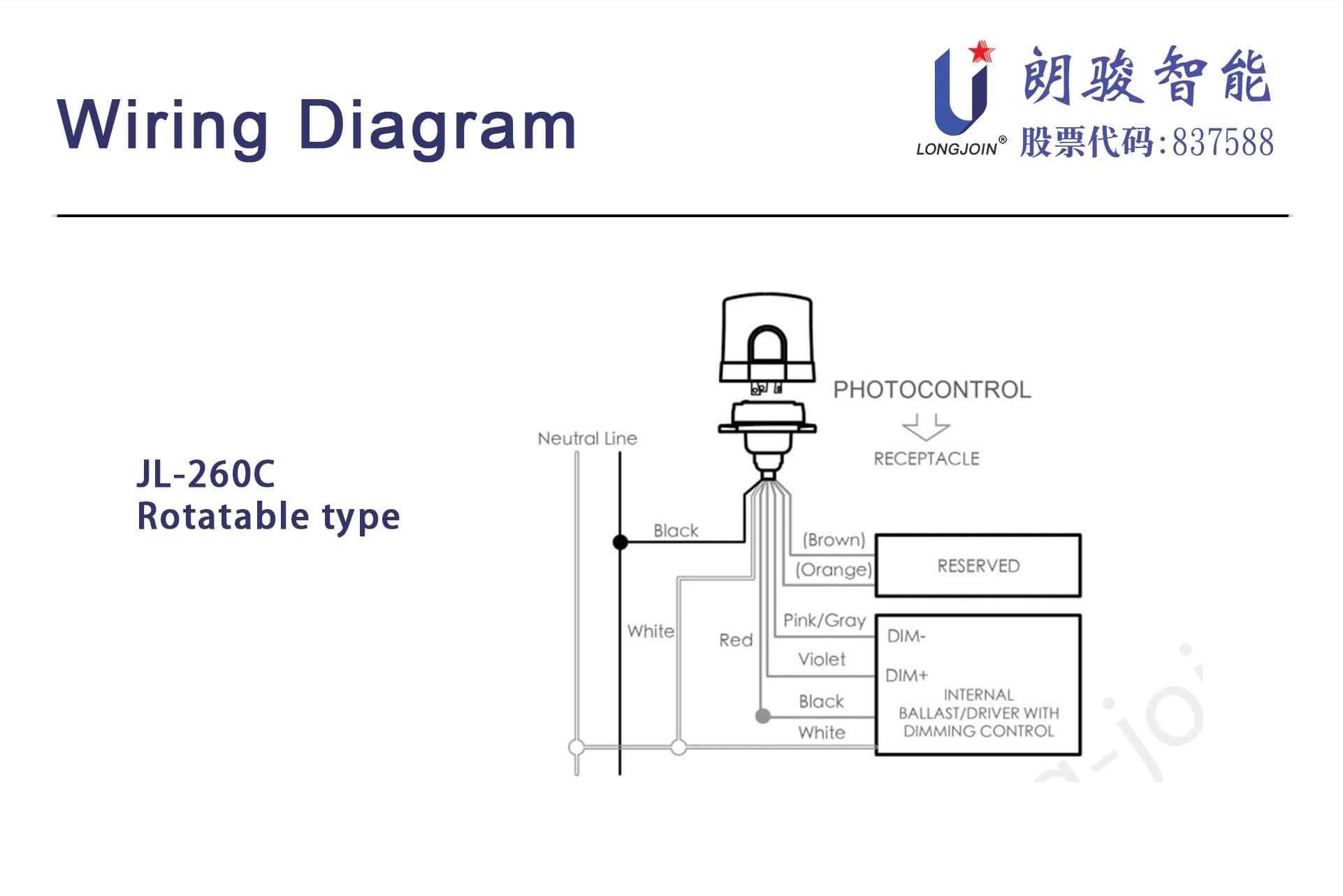

jl260c photocell receptacle install on different position of single light pole, here this function with 0-10v or Dali dimming output. this is outstanding design structure, it is adjustable north positioning mark direcional, flexible mounting on light arm and  here is wonderful rotatable under limitable ranges. this type receptacle terminal rear cover is made of nylon, receptalce body is PC material. if you choose this install in this light fixture, then light pole with photocell switch which waterproof performance can reach to IP65 or IP66.

Number	JL-260C
Rated Voltage	-
Applicable Voltage Range	0-480VAC
Rated Frequency	50/60Hz
Signal Control	0-30 VDC, 250 mA Max
Wire Gauge	16AWG(Power)+18AWG(Signal) 20" min
Operate Levels	40°C ~ +70°C
Power Loading	15A
Certificate	UL, CE,ANSI C136.41

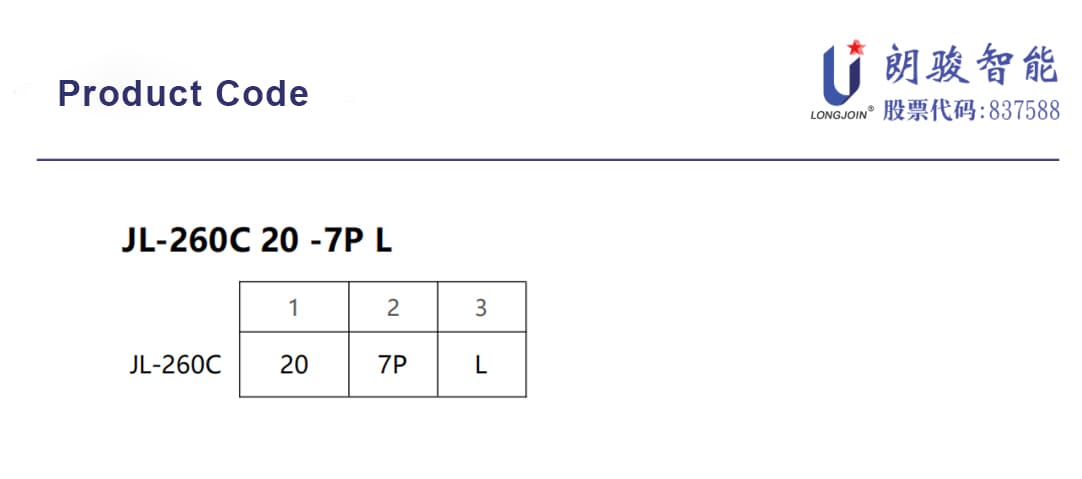

1: 20=20" (Customizable, 20 Min.)

2: 7P=7 wires 5P=5 wires

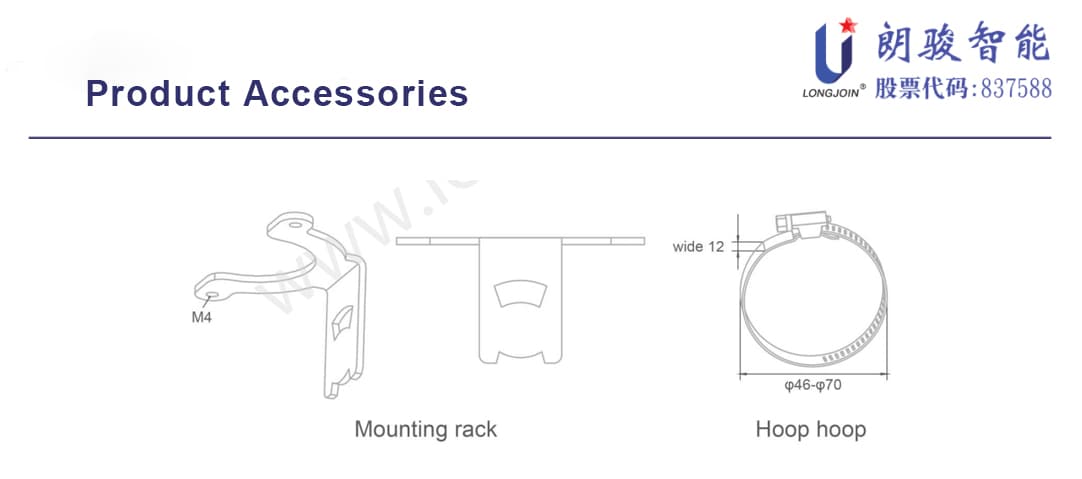

3: L=special aluminum bracket （option）
