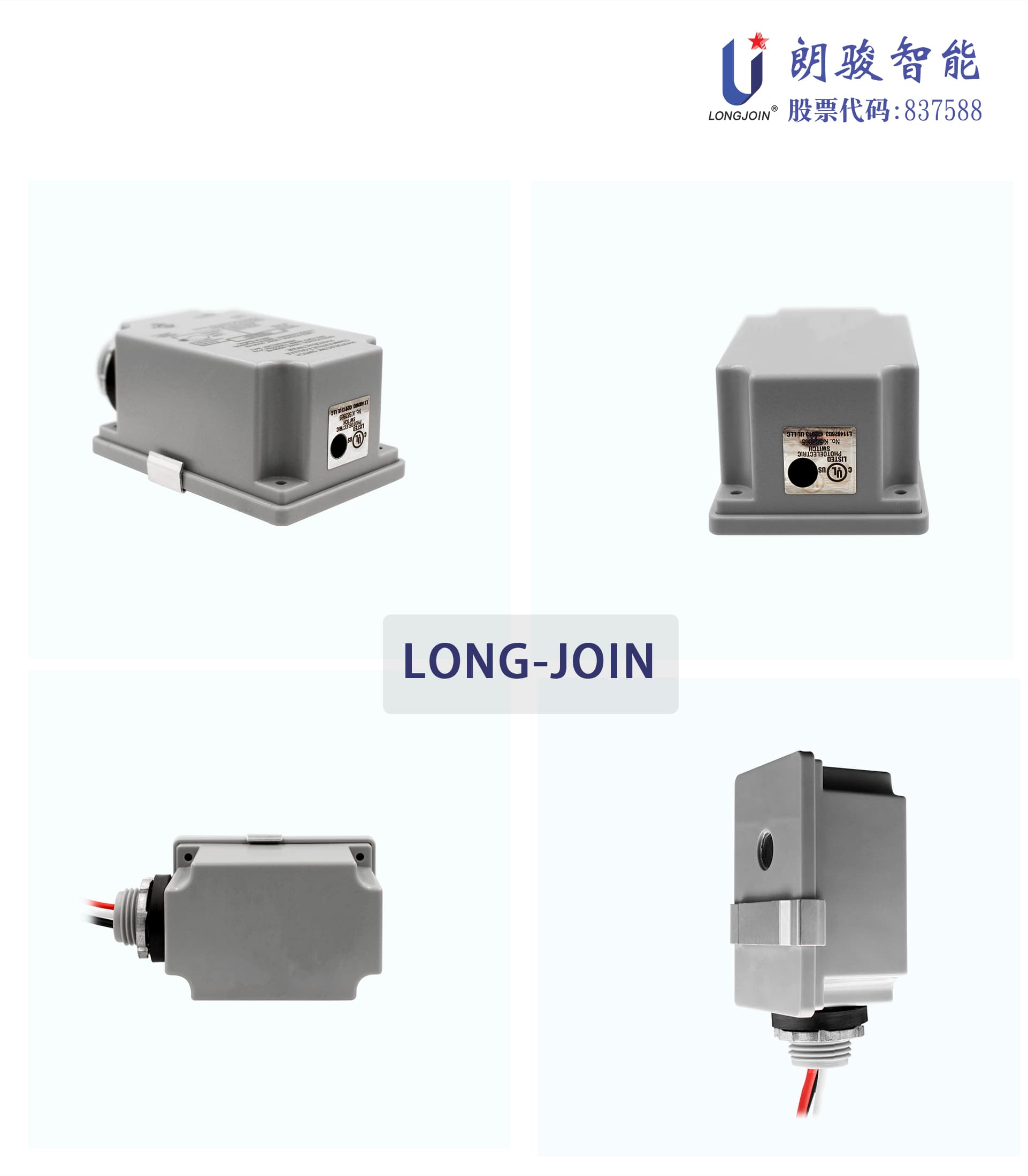

JL-106 Series Stem Photocell Control longjoin

120V jl-106A(V) outdoor light fixture application, while you can choose  another line voltage 220-277VAC to suit for best rated loading less than 2000w outdoor led light.  this type light controller mount way screw-in specific light fixture(eg, distribution controller case, landscape lighting and led flood light,underwater lighting controller), and leveraging Epoxy sealants to rebust fix it on the fixture.  In these stem photocell switch, it common feature low consumption 1.5w max and rated loading 2000w.

Number	JL-106A(V)	JL-106B(V)	JL-106C(V)	JL-106D(V)
Rated Voltage	120VAC	220-240VAC	207-277VAC	2577VAC
Applicable Voltage Range	–		200-305VAC	–
Rated Frequency	50/60Hz
Rated Loading	2000W Tungsten,2000VA Ballast
Power Consumption	1.5W Max.
Operate Levels	10~20Lx Turn-On / 30~60Lx Turn-Off
Fail Mode	Fail on

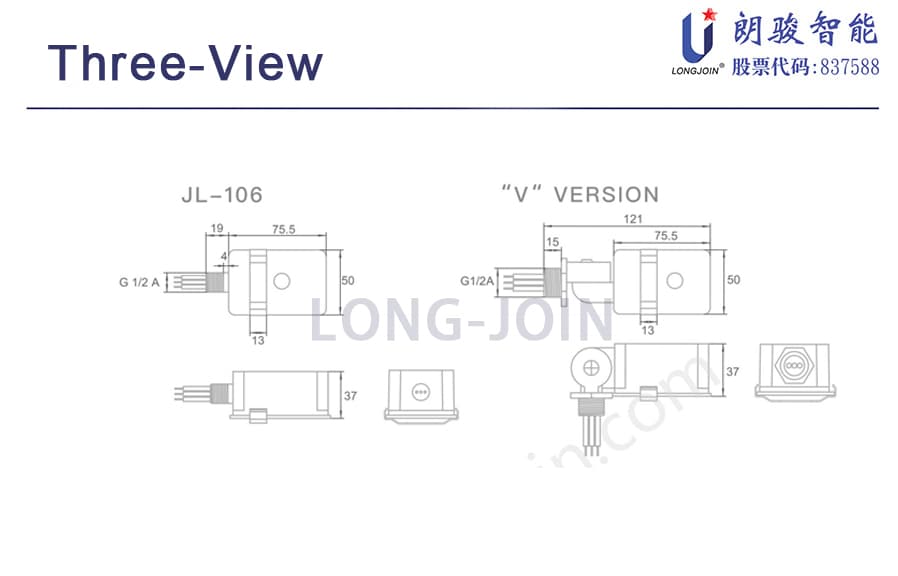

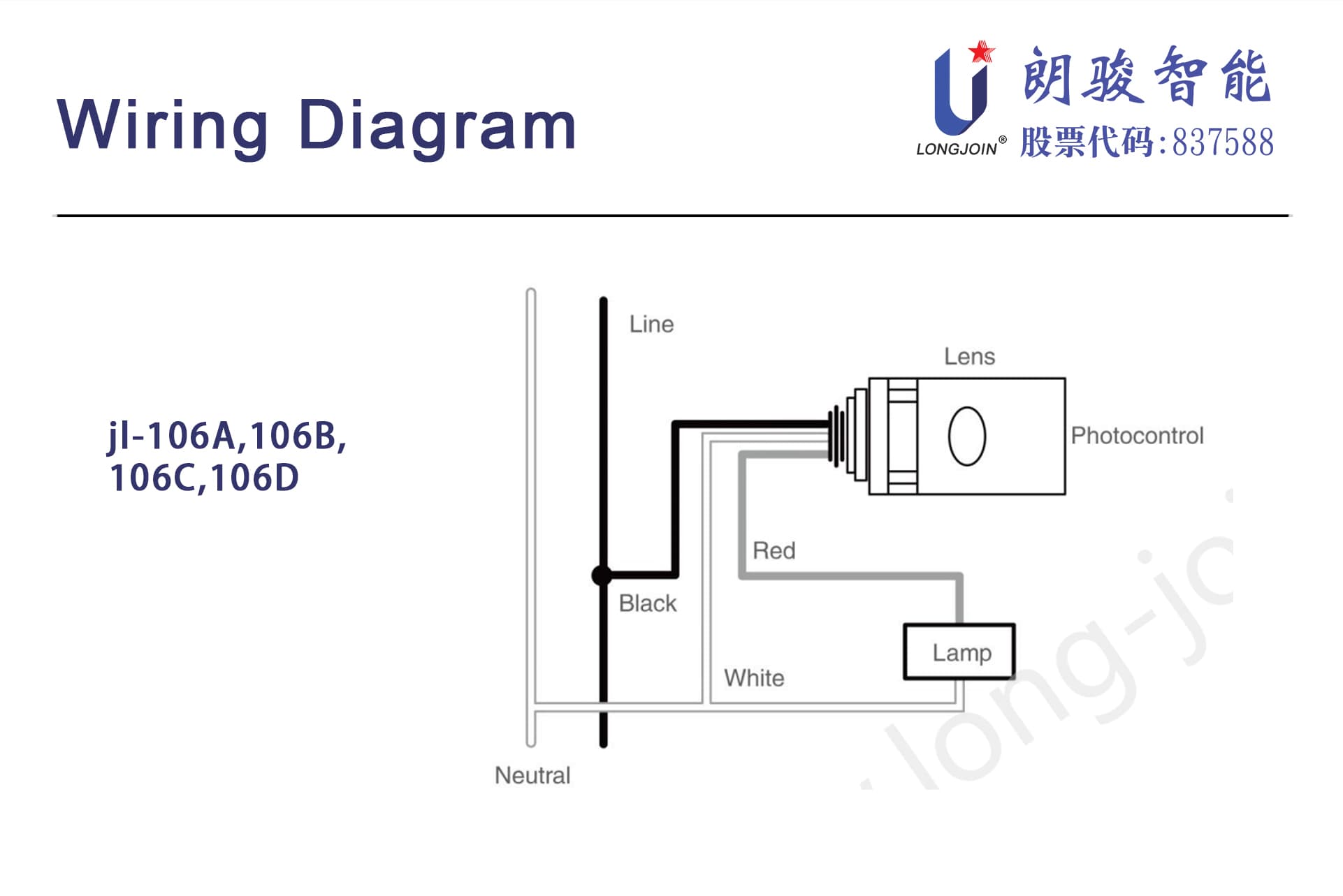

Wire according to the diagram:

Slide the shading strip to have preferred On/Off levels, if necessary.

Do not install the switch with the Photocell facing artificial or reflected light. This will cause the unit to cycle on and off at night.

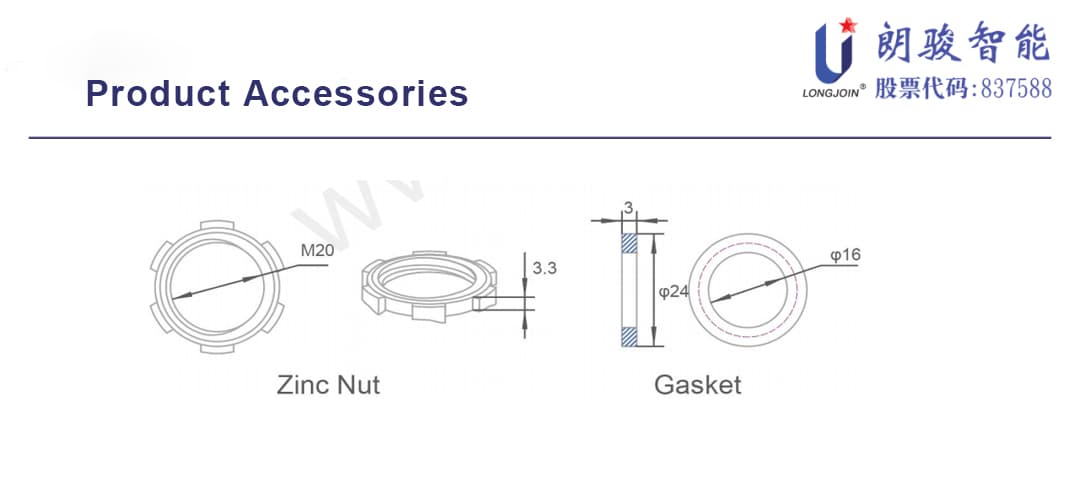

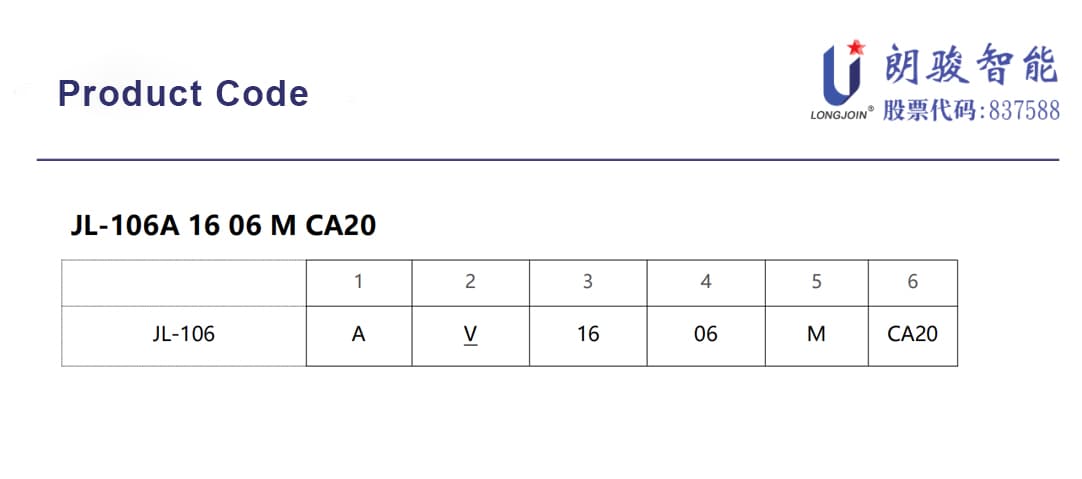

1: A=120VAC

 B=220~240VAC

C=208~277VAC

D=277VAC

2: V(option) =swivel added

3: Lead Rating 16=16 AWG, 150ºC rated
