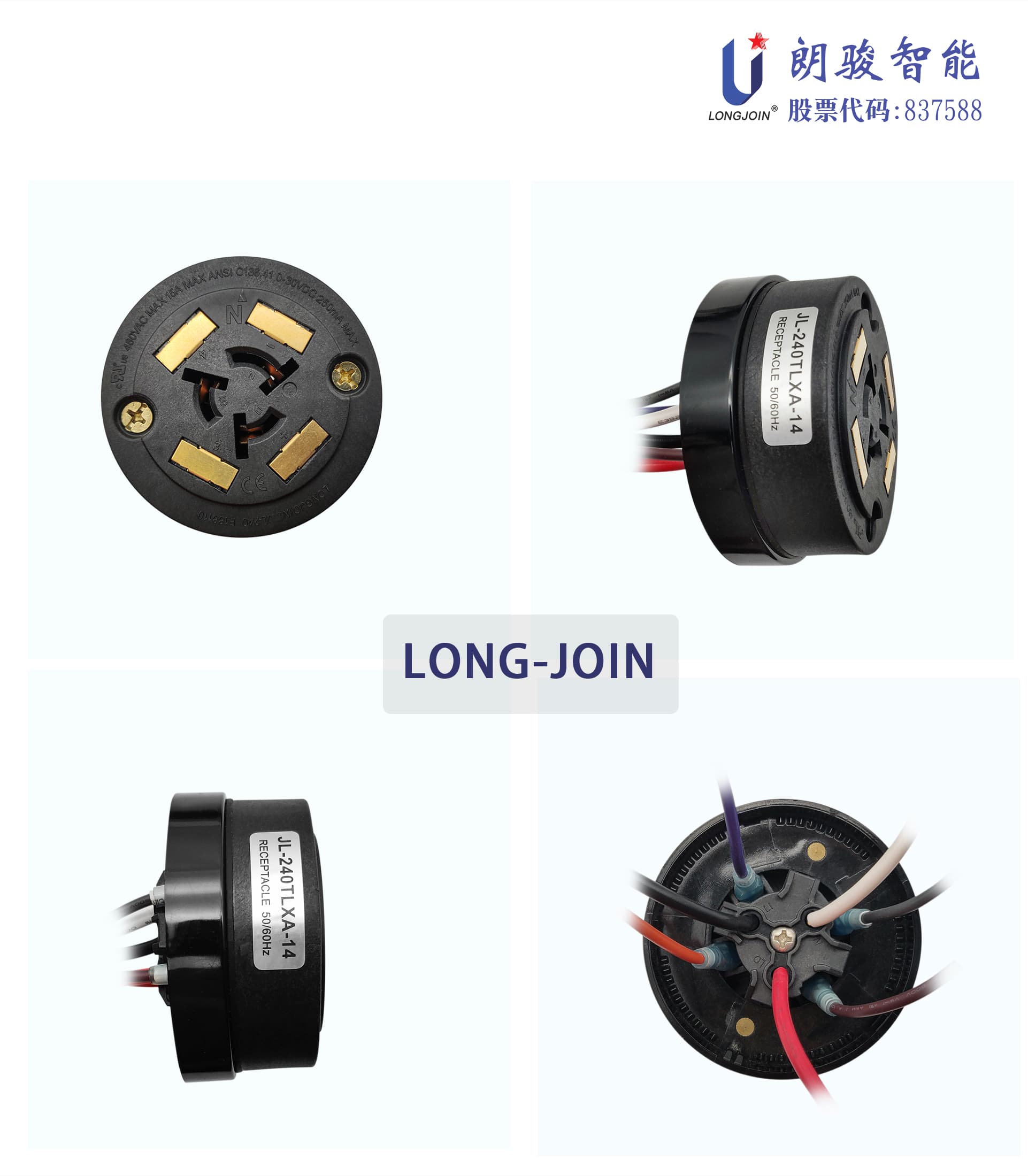

ANSI C136.41 Rotatable Twist-Lock Dimming Photocell Receptacle JL-240TLXA/B

longjoin nema photocell controller receptacle seris, here are various application type and multi-function feature in our prdocuts. such as tighter seal waterproof JL-240fxa, receptacle body terminal joint where can use be gland cable connector. rotatable type receptacle jl-240TLXA, jL-260C, and jl230, JL-23F(F-waterproof)

0-10v dimming or dali dimming type JL-240TL 7 pin / 5pin receptacle, and this can offers 360° rotation limiting feature. however, you can don't adjust twist lock photocell nearby special location, and next steps, you can take this inner ring change position,  via this way, you will  adjust photocell orditional to taget locaion.

Number	JL-240TL
Rated Voltage	-
Applicable Voltage Range	0-480VAC
Rated Frequency	50/60Hz
Signal Control	0-30 VDC, 250 mA Max
Wire Gauge	16AWG, 14AWG, 6 inch min
Operate Levels	40°C ~ +70°C
Load Rating	15A
Certificate	UL, CE,ANSI C136.41

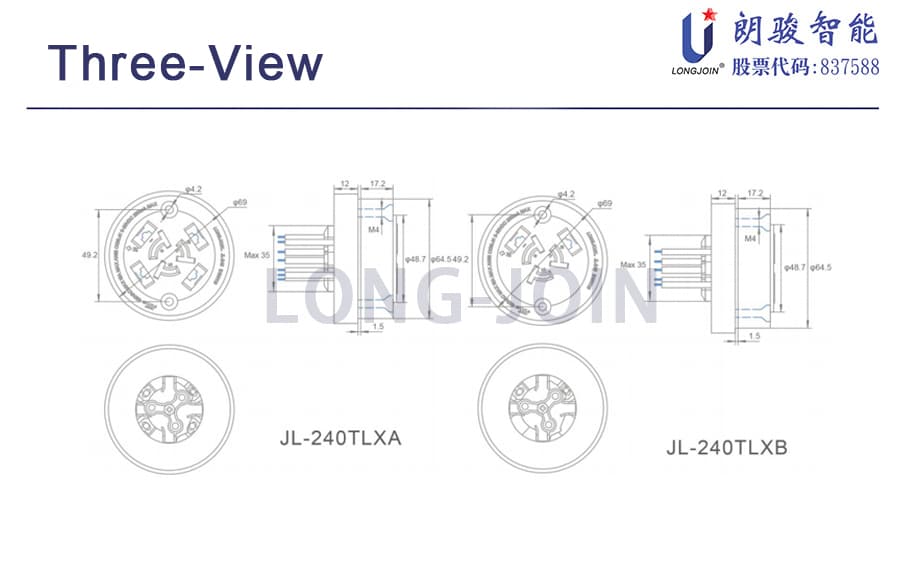

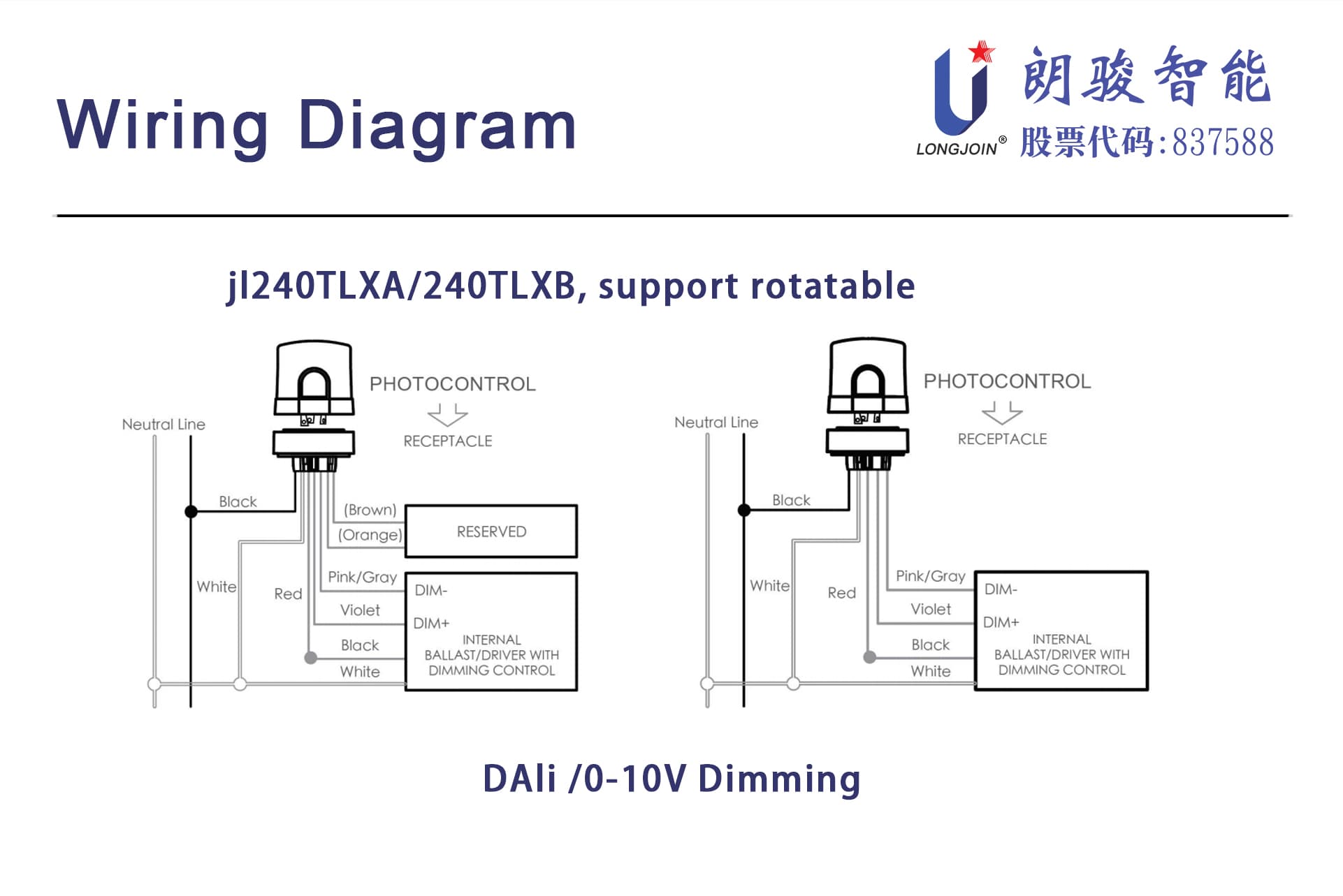

isconnect power; wire the receptacle according to the diagram below.

An arrow indicating NORTH on the top face is used to assist correct orientation.

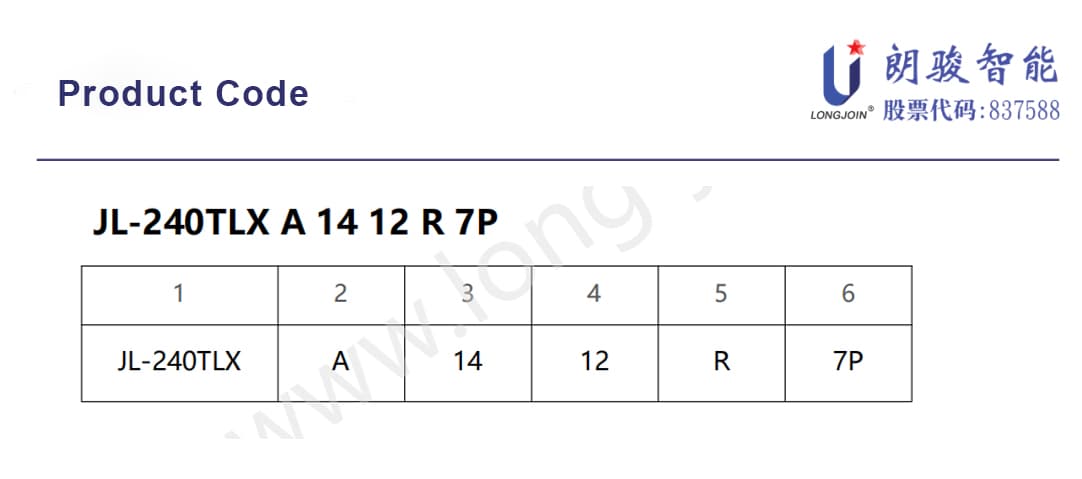

2: A=4 Dimming pads B=2 Dimming pads

3: Power Lead Rating

14=14 AWG, 105ºC rated

14G=14 AWG 150 ºC rated

 16=16 AWG, 105ºC rated

16G=16 AWG 150 ºC rated

16S=16 AWG Double isolated wire (Class II)
