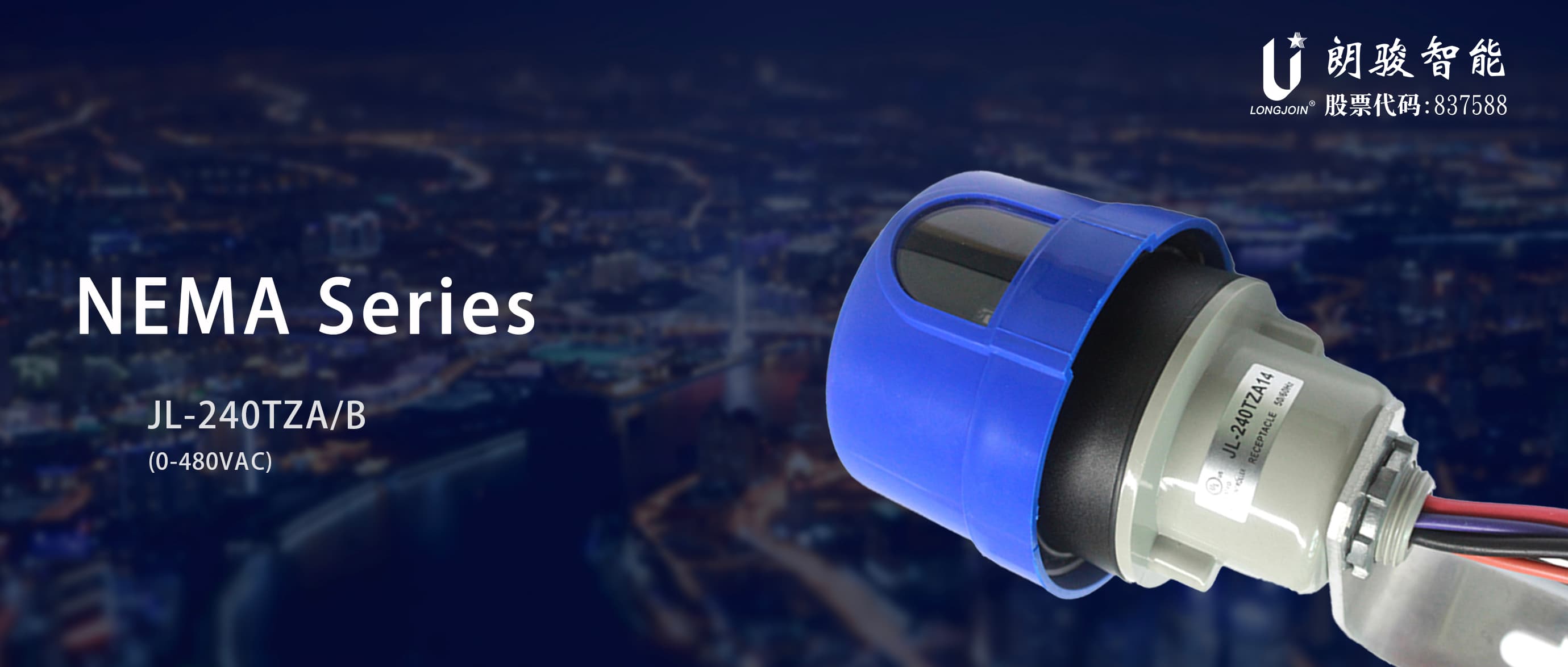

JL-240TZA photocell Receptacle Rear Cover type ABS Material

longjoin photocell manufacturer provider Rear Cover type ABS Material termianl Jl-240TZA/B NEMA 7 pin, 5 pin receptacle. in additional,  you can also optional aluminium bracket as this accessories , then it can wall pack mount on this light fixtue or arc light pole to best way protect light fixtue good slim shape.

Number	JL-240TZA/B
Rated Voltage	-
Applicable Voltage Range	0-480VAC
Rated Frequency	50/60Hz
Signal Control	0-30 VDC, 250 mA Max
Wire Gauge	16AWG, 14AWG, 6inch
Operate Levels	40°C ~ +70°C
Load Rating	15A
Certificate	UL, CE,ANSI C136.41

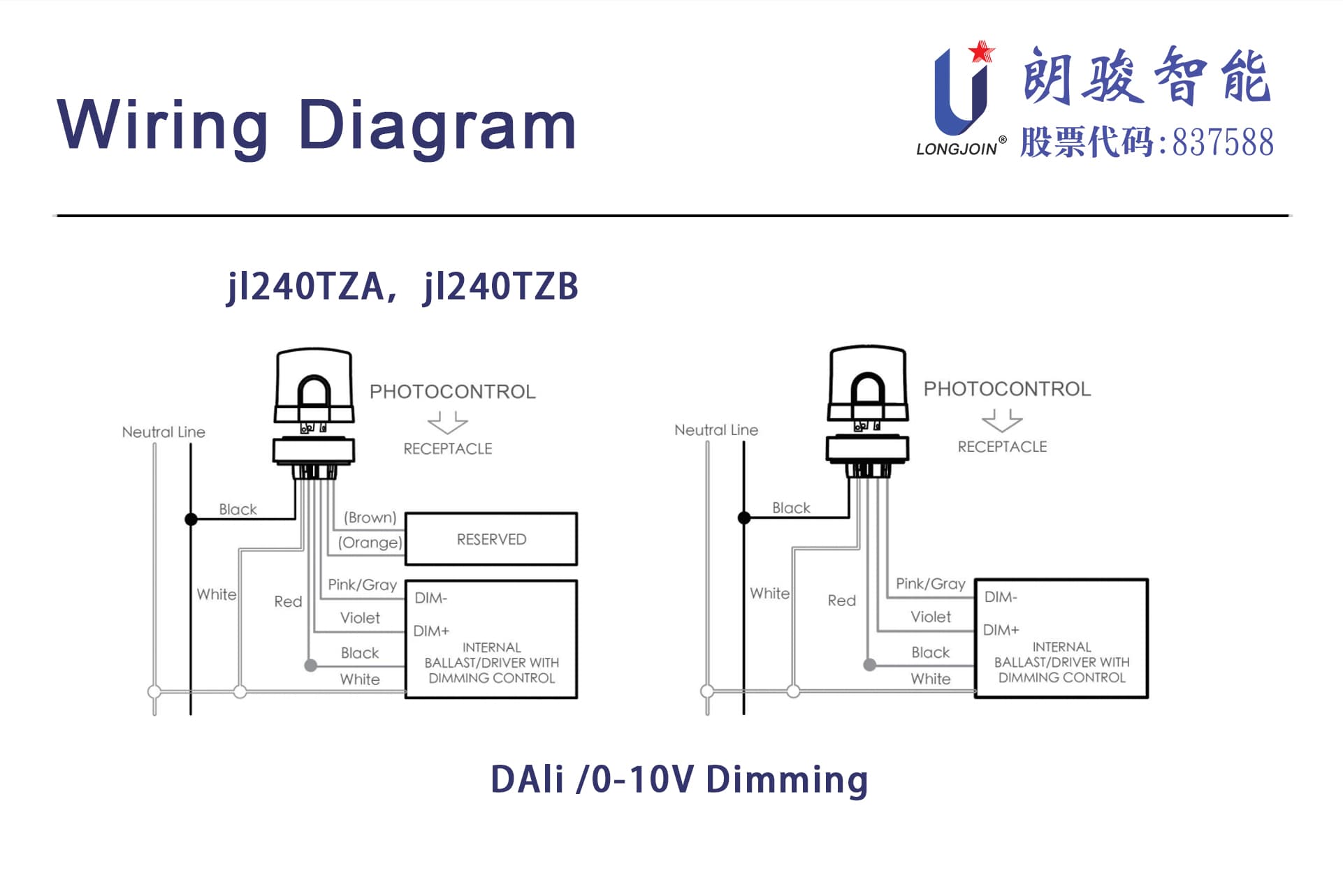

Disconnect power; wire the receptacle according to the diagram below.

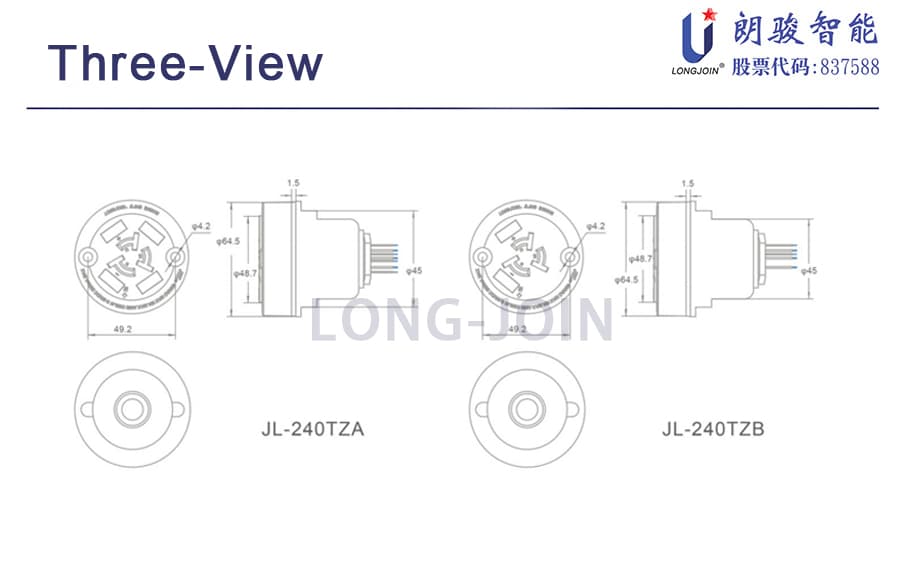

An arrow indicating NORTH on the top face is used to assist correct orientation.

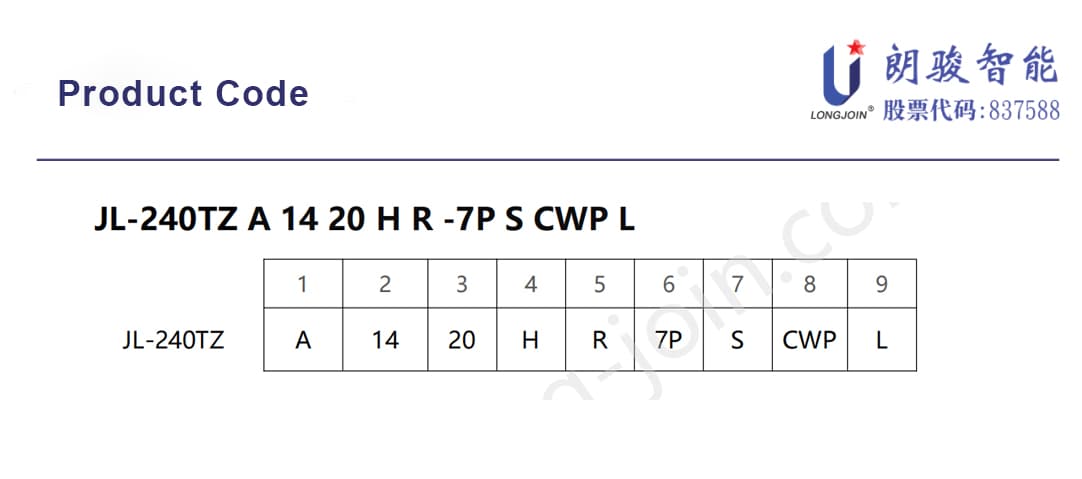

1: A=4 Dimming pads B=2 Dimming pads

2: Power Lead Rating

14=14 AWG, 105ºC rated

14G=14 AWG 150 ºC rated

16=16 AWG, 105ºC rated

16G=16 AWG 150 ºC rated

16S=16 AWG Double isolated wire (Class II)

3: 20= 20" (Customizable, 12 Min.)
