Swivel Part Stem photocell JL428CV longjoin

428C swivel stem photocell01 (1).jpg

Electronic type photocell JL-428C , low power consumption <=0.5, and time-delay 5-10s can avoid a beam sunlight toward on this controller cause suddenly flash light or constant on.

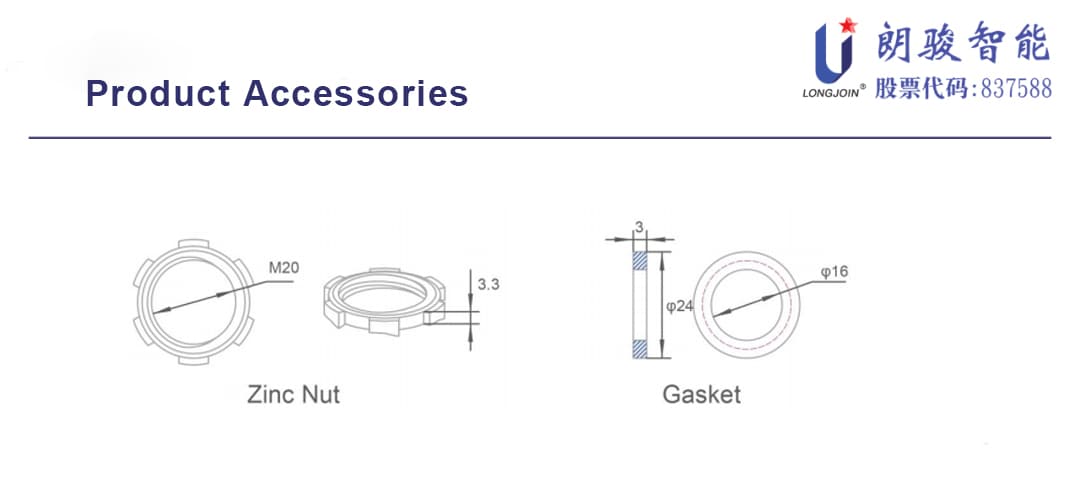

JL-428C here different type controller, and Z symbol is stand for zero-cross technology built-in for longer work life. ie JL-428CZ, it is optionable function parameter.  additionlly,  this swivel parts also option, then you can properly good lightig solution accorting to light fixture and ambient enviroment.

NumberJL-428CJL-408CZ
Rated Voltage120-277VAC
Applicable
Voltage Range
105-305VAC
Rated Frequency50/60Hz
Rated Loading1000W Tungsten
1200VA Ballast @120VAC 1800VA Ballast @208-277VAC
8A e-Ballast @120VAC 5A e-Ballast @208-277VA
Power Consumption0.5W Max
Operate Levels16Lx Turn-On / 24Lx Turn-Of(choose parameter is deponed your choice )
Fail ModeC4:Fail off, C5:Fail On
Surge ProtectionOpition

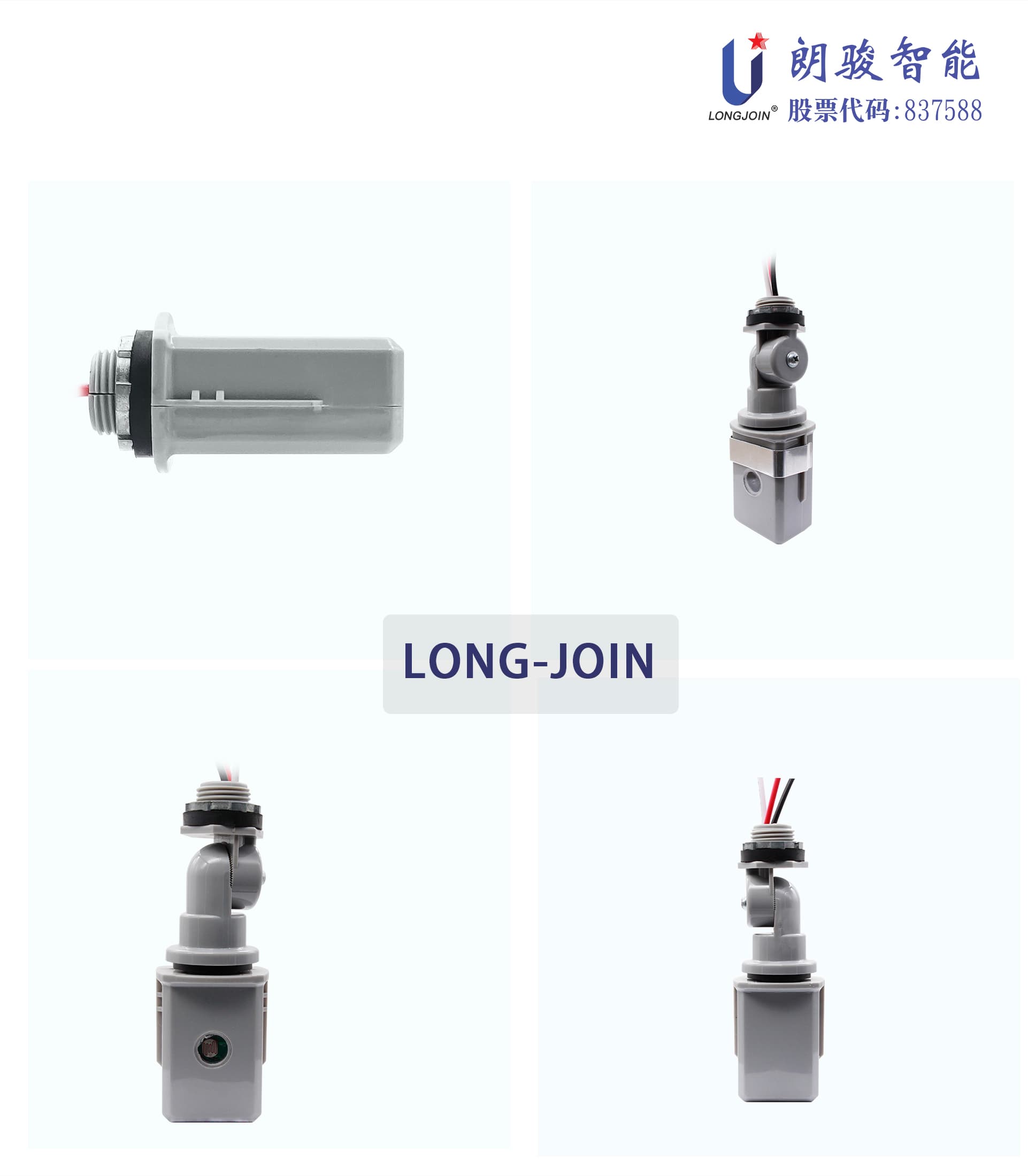

428C swivel stem photocell06(1).jpg




428C swivel stem photocell05(1).jpg

428C swivel stem photocell04(1).jpg

428C swivel stem photocell03(1).jpg

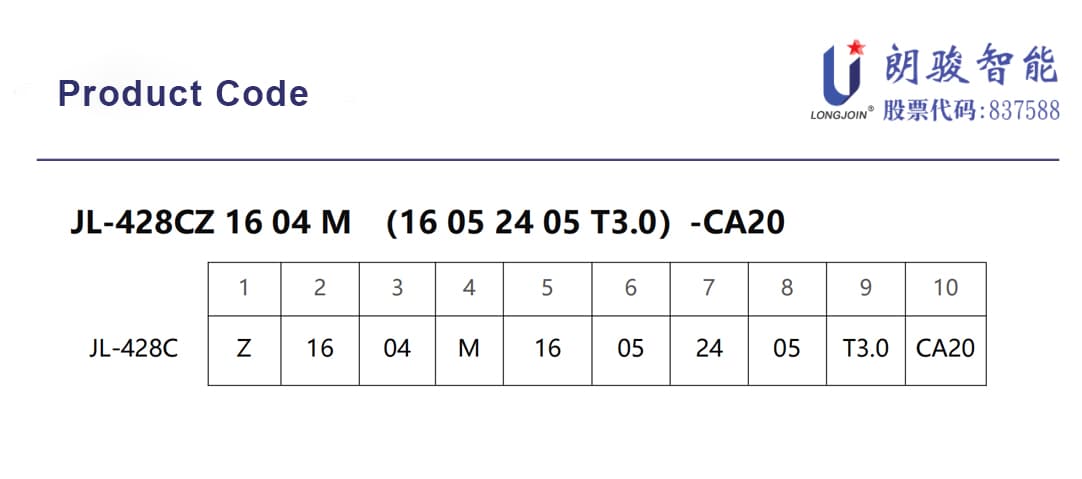

1: Z= Zero cross(option)

 2: Lead Rating 16=16 AWG, 105ºC rated 16G=16 AWG 150 ºC rated

3: Lead Length XX, in inches (04 min.)

4: M(option) =UL holographic labe
