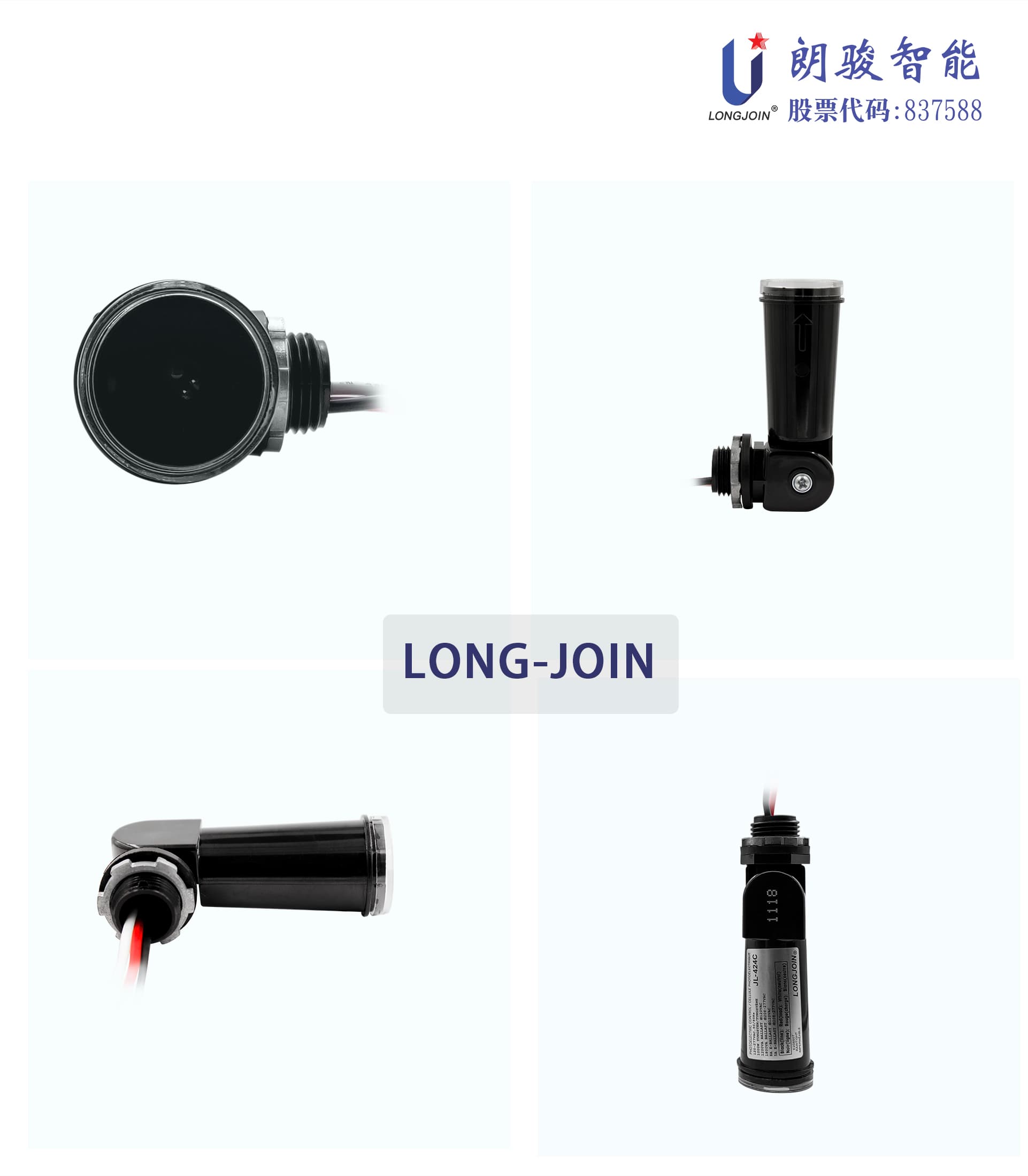

JL-424C Manual Directional Swivel Stem Photocell

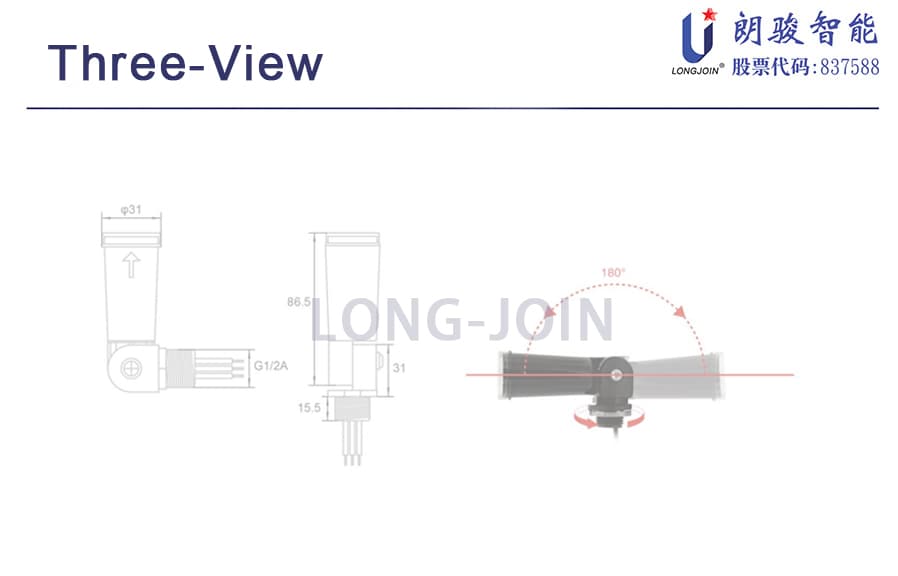

UL Liste JL-424C stem photocell, 120-277VAC. it built-in a specail design technoligical electronic circuits with MCU, so you can pre-setting to different turn on or turn off level in lux value until this controller reach to starting from local lighting time to dawn.  anther a flip side, you can free left-right adjustable on the 180 degree ranges toward to  sunlight.

Number	JL-424C
Rated Voltage	120-277VAC
Applicable Voltage Range	105-305VAC
Rated Frequency	50/60Hz
Rated Loading	1000W Tungsten, 1200VA Ballast@1 20VAC 8A e-    Ballast@120V
Power Consumption	0.5W Max
Operate Levels	40°C ~ +70°C
Wire Gauge	AWG #16,AWM 1015
Certificate	UL, CE,RoHS

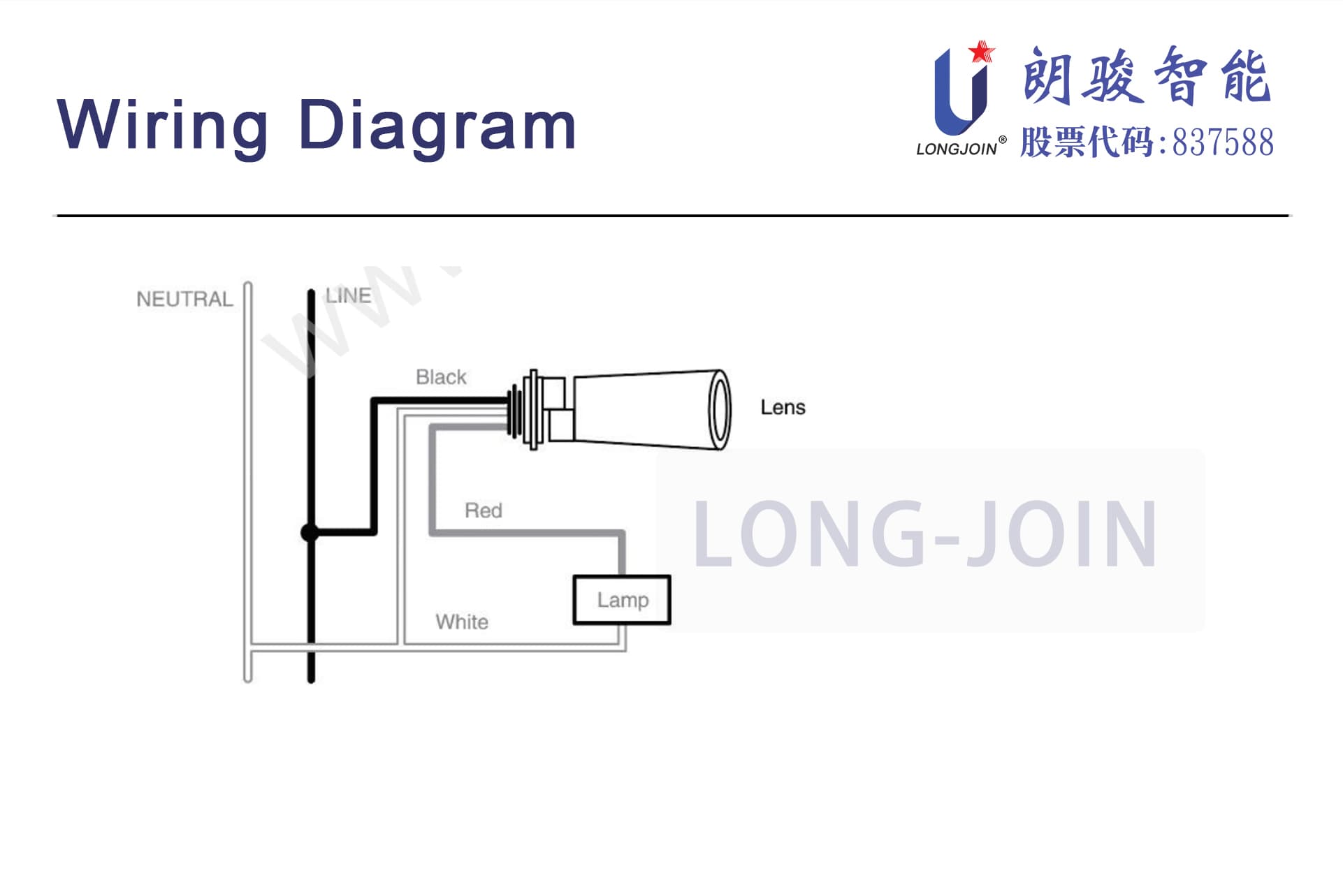

Disconnect power, remove junction box cover, place the photocontrol through knockout hole and fasten with locknut. Wire according to the diagram in below.

Do not install the photocontrol with the Photocell facing artificial or reflected light. This may cause the unit to cycle on and off at night.

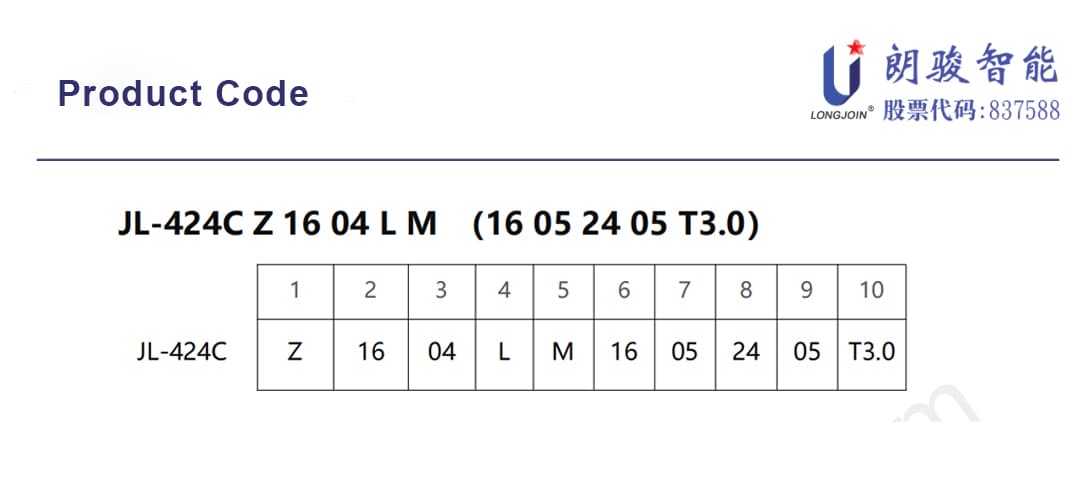

1: Z= Zero cross（option）

2: Lead Rating

16=16 AWG, 105ºC rated

16G=16 AWG 150 ºC rated

3: Lead Length

XX, in inches (04 min.)

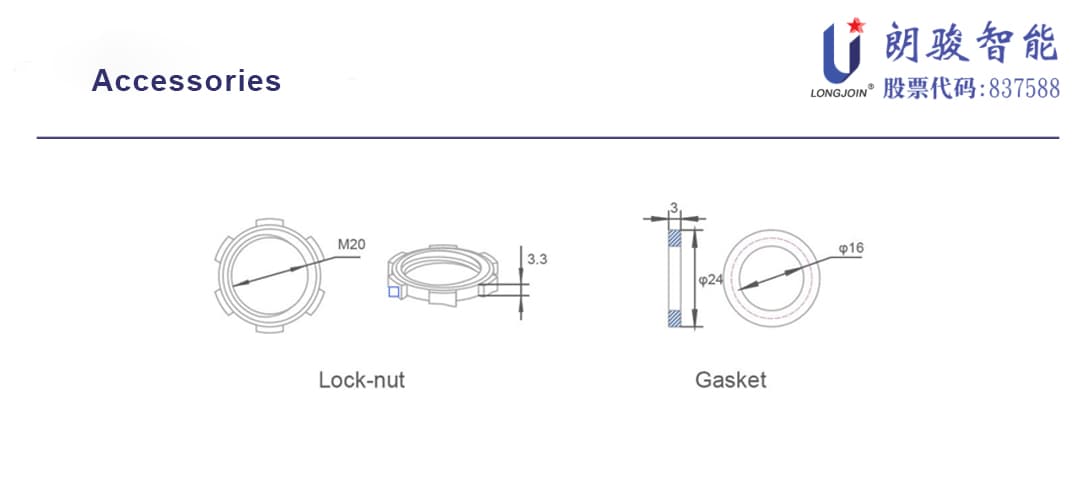

4: L = Double lock-nut

null= single lock-nut
