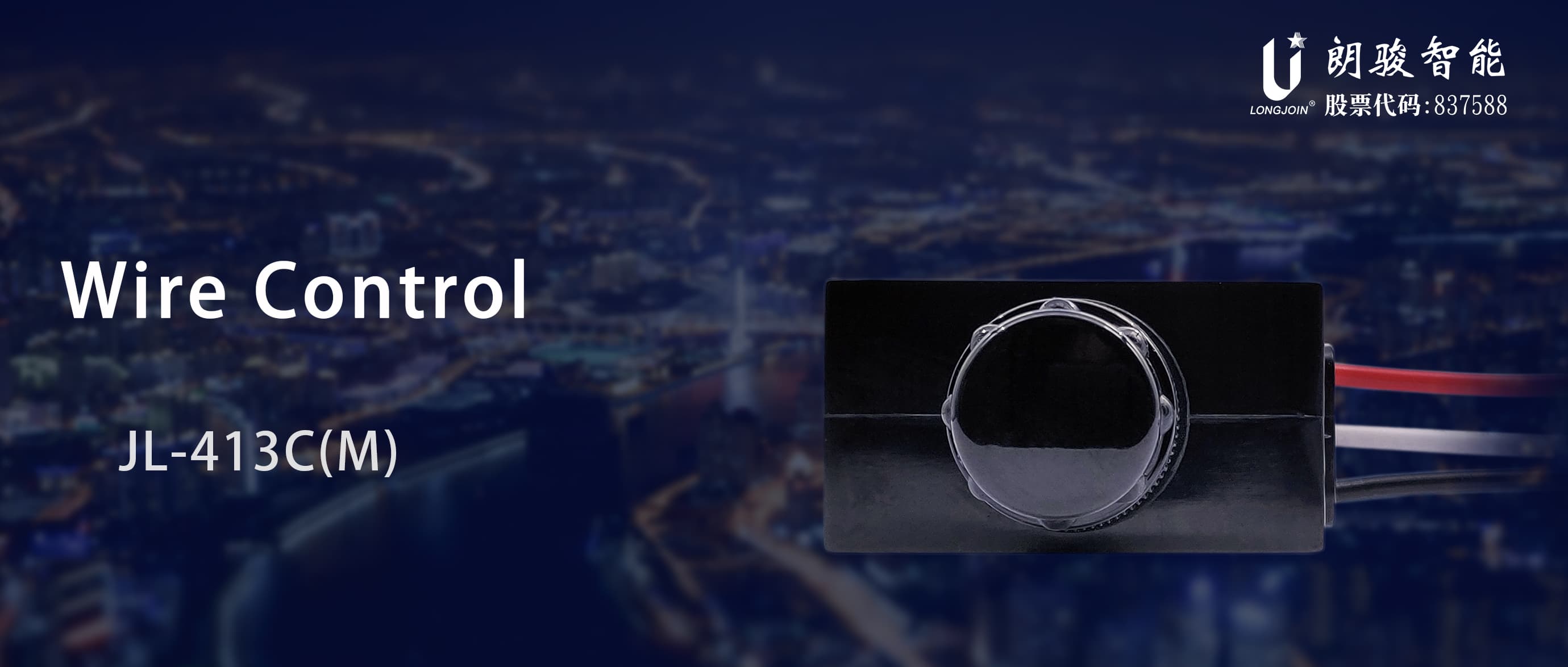

JL-413C Electronic type Mode Button Photocell Rated Loading 1000W

Here good prominent feature electronic controller mode, and Fail off,  and surge arrester reach to 10000Amp. especially this controller to improve power factor of light fixture.

In this JL-413C(M), there is an "M" mark on the product name. I'll give you a tip: the "M" reveals that it contains a MOV with a 460-Joule/10,000-Amp rating. Another "M" stands for a UL holographic label. However, MOV performance is not an essential feature.

Number	JL-403C(M)
Rated Voltage	120-277VAC
Applicable Voltage Range	105-305VAC
Rated Frequency	50/60Hz
Rated Loading	1000W Tungsten, 1200VA Ballast@120VAC 8A e-Ballast@120V
Power Consumption	0.5W
Operate Levels	40°C ~ +70°C
Wire Gauge	AWG #16,AWM 1015
Certificate	UL, CE,RoHS

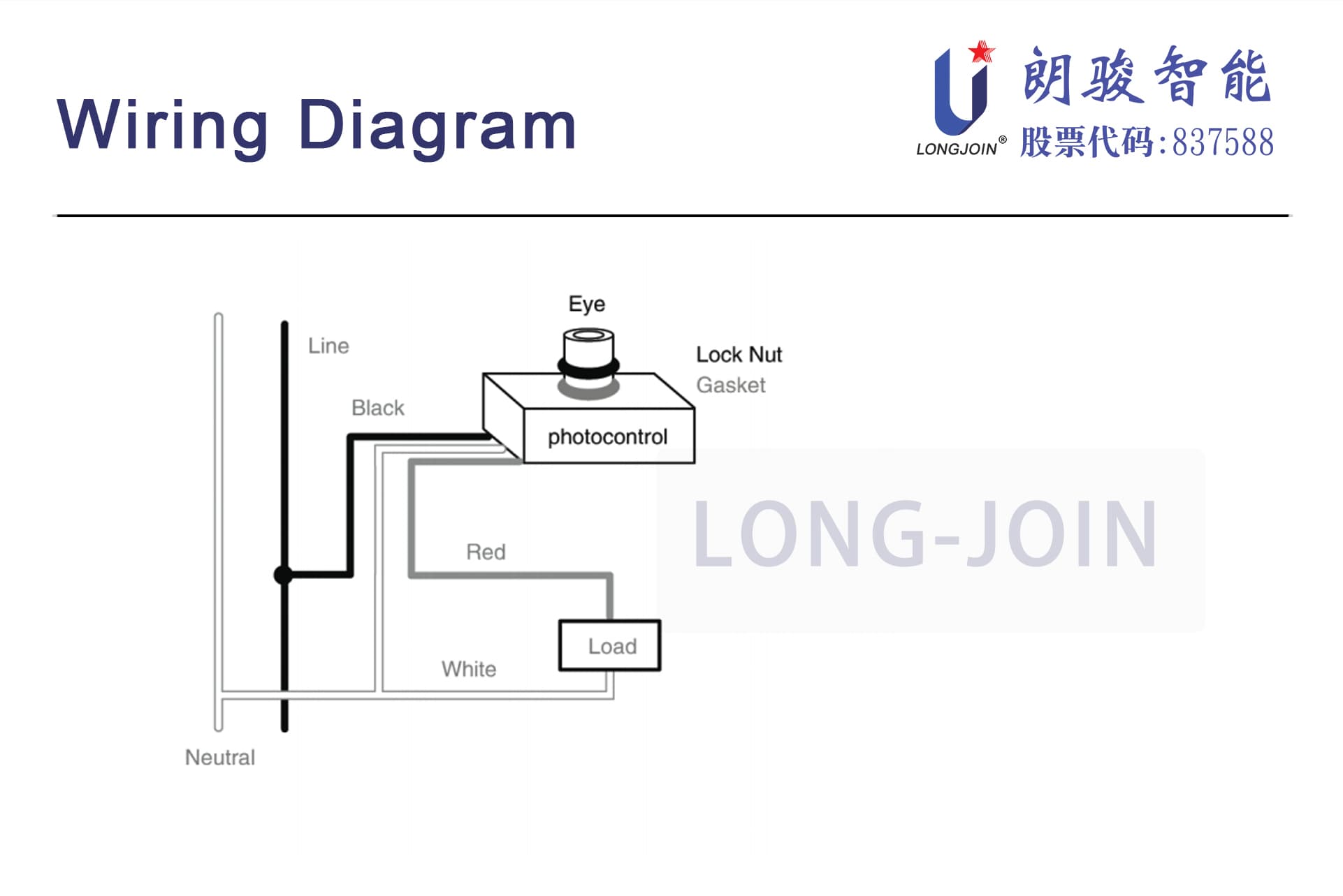

Disconnect power, remove junction box cover, place the photocontrol through knockout hole and fasten with locknut. Wire according to the diagram in below.

Do not install the photocontrol with the Photocell facing artificial or reflected light. This may cause the unit to cycle on and off at night.

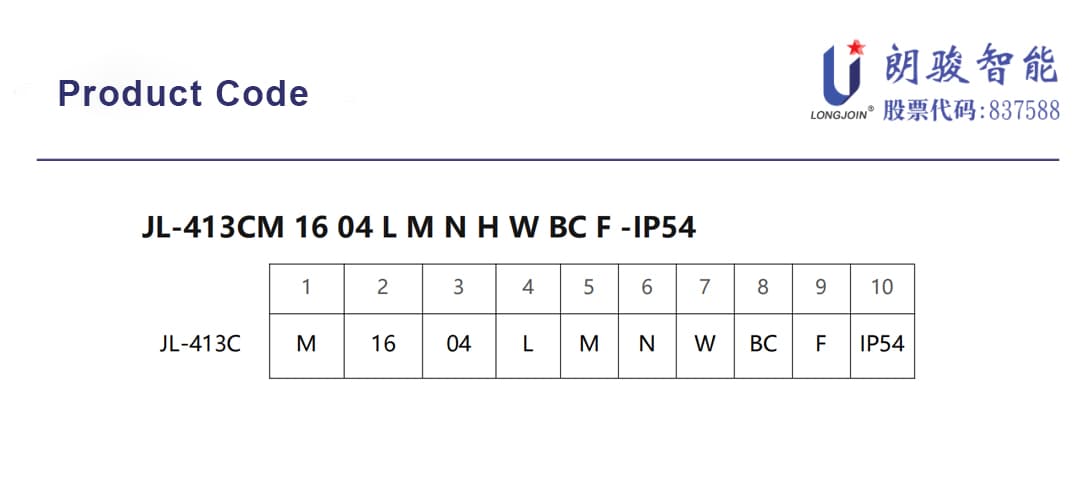

1: M(optional) = MOV23, 460Joule / 10000Amp

04: Lead Rating

2:16=16 AWG, 105ºC

16G=16 AWG 150ºC

5:W(option) =UL holographic label

7:W: W(option)= aluminum panel

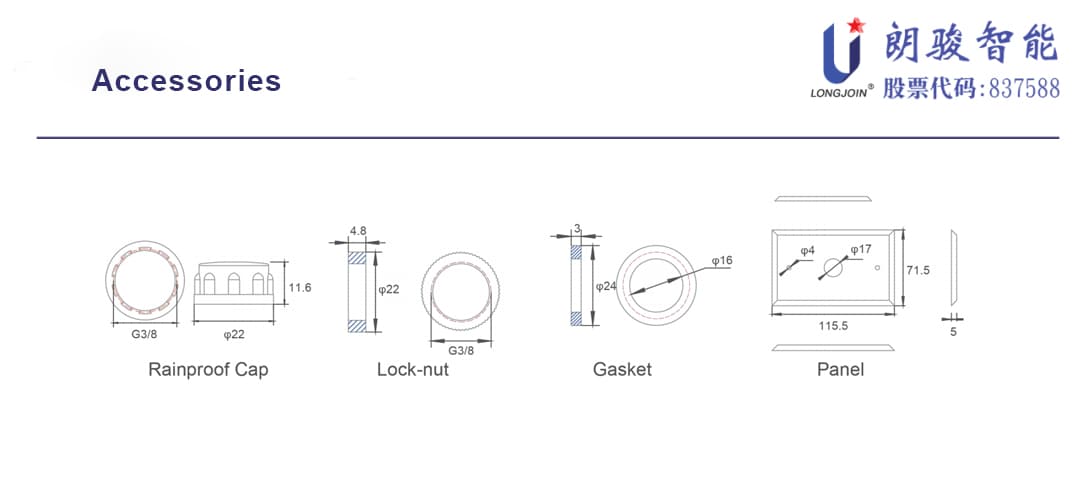

8: optional cap

BC = black shading cap

CC= transparent rain cap

Null = none
