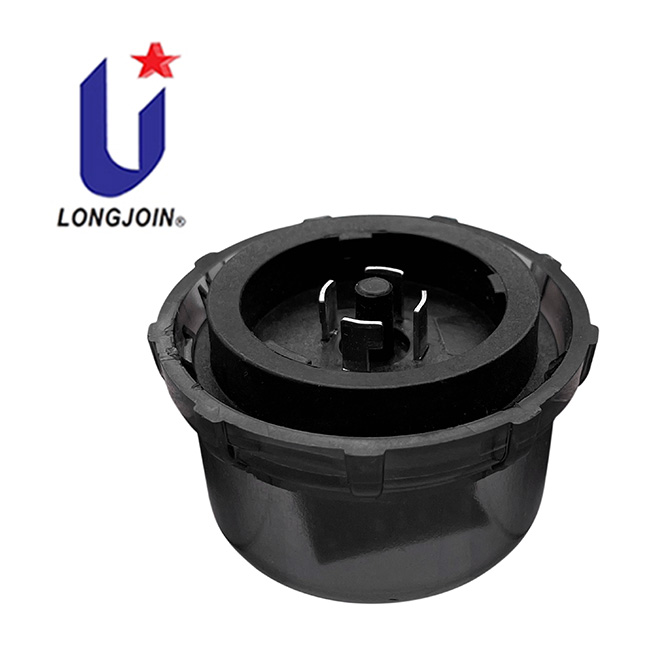

Light sensing + Microwave Sensing Mode, and Access to Remote Systems Zhaga Sensor JL-712G3L

JL-712G3L 0-10V Dimming and Microwave + light sensing mode, and you can setting different parameter to real lighting atmosphere. at the same time, it is deployed into UM9900 management system, then you can remote distance control and midnight Dimming, and complete important functions, such as data collection, remote configuration, weather monitor, and so on.

Demo a part of the function

Deploy Network Diagram

Parameter

Model	JL-721G3L
Power supply	Voltage:12~24VDC, 3W, peak current:1A;
Power consumption	1.2W
Dimming	0-10V
Sensing	light sening+Mircowave
Microwave frequency	5.8GHz
Maximum hanging height	<15 m
Sensing radius	4-6m
Default trigger brightness	100%
Power on initialization	After startup, the light is turned on at 100% brightness by default, and it is taken over by the device operation mode after 5S
Control mode	reference our JL-712GL Specification
Stand	IEC61002, GB/T242.310-2008,UL94-V0)
Spectral range	wavelength:350-110n0m, peak value:550nm
Sensing Angle	<92 degree
Preventign trigger	Possess certain ability to prevent wind, rain, leaves, and small animals
Communication	LTE Cat.1 communication
Linkage Distance	<=1Km

Diagram

Product Details
