Zhaga Book18 Socket JL-700T3N Flick-pin Version

JL-700T3N zhaga socket with zhaga book 18 standard, and has brilliant features shorter thread length, and no tool mount, not but the best important via Flick-pin contacts to connect lamp fixture inside electric unit wires easily.

Parameter

Product Model	JL-700T3N
Mounting	M20X1.5 thread
Height above luminaire	10mm
Wires	–
IP Grade	IP66
Receptacle Diameter	Ø30mm
Gasket Diameter	Ø36.8mm
Thread length	22.5mm
Contacts rating	1.5A, 30V (24V typical)
Surge test	Meets 10kV common mode surge test
Capable	Hot pluggable capable

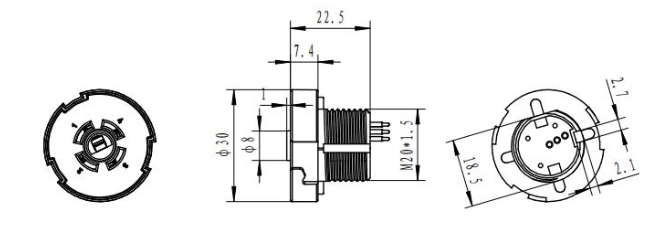

Diagram

Product Details
