All the JL-240 series nema 7 pin Street Light Control Receptacle were designed for the Street LED luminaires those intended to have an ANSI C136.10-2006 receptacle to fit a Street Light Dimming Control. This series conform newly published ANSI C136.41-2013 to allow a LED lamp multi-controlled through the receptacle.
This series offers 2 or 4 gold-plated low voltage pads on the top surface to fit Dimming Controller has ANSI C136.41 conforming spring contacts, and offers male quick connectors at rear back for signal connection.
This series also offers 360 degree rotation limiting feature to conform ANSI C136.10 requirements.
Both JL-240X and JL-240Y have been recognized, and JL-200Z14 has been listed by UL to applicable US and Canadian safety standards, under their file E188110, Vol.1 & Vol.2.
0-10V Dali Dimming Street Light Controller Receptacle
Product Features
-ANSI C136.41-2013 to allow a LED lamp multi-controlled through the
receptacle.
-Offers 2 or 4 gold-plated low voltage pads on the top
surface to fit photocontrol has ANSI C136.41
conforming spring contacts,
-Offers male quick connectors at rear back for signal
connection.
-Listed by UL to applicable US and Canadian safety standards,
under their file E188110, Vol.1 & Vol.2.

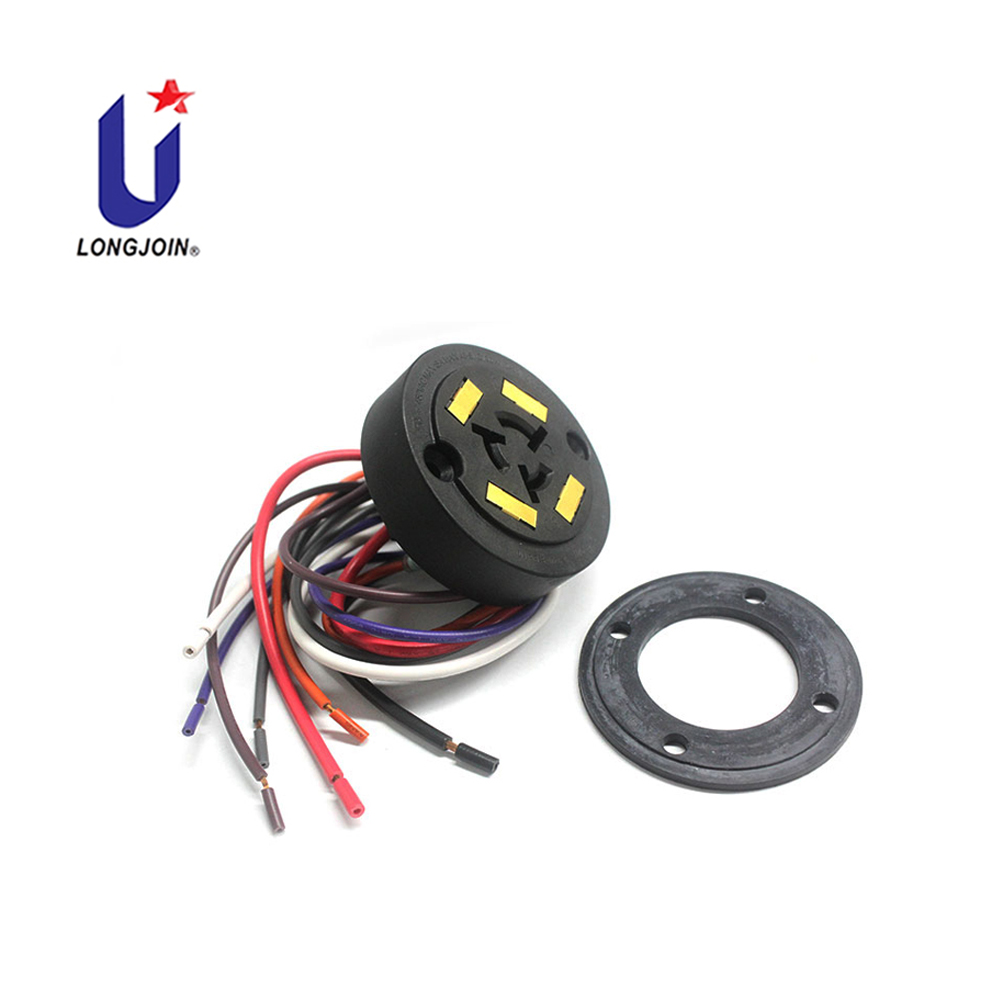

Nema 7 Pin Photocell Receptacle Display
| Model No. | JL-240X | JL-240Y | JL-240Z14 | |
| Applicable Volt Range | 0~480VAC | |||
| Rated Frequency | 50/60Hz | |||
| Power Loading | AWG#14: 15Amp max. / AWG#16: 10Amp max. | |||
| Optional Signal Loading | AWG#18: 30VDC, 0.25Amp max. | |||
| Ambient Temperature | -40℃ ~ +70℃ | |||
| Overall Dimensions (mm) | 65Dia.x 40 | 65Dia.x 67 | ||
| Accessory | Rear Cover | ● R option | ● | ● R option |
| Spring Holder | - | ● | - | |
Wall mount Back Cover | - | - | ● | |
| Lock Nut | - | - | ● | |
| Wall Mount Bracket | - | - | ● 30x(70+130) | |
| Leads | 6” Min. (See Ordering Information) | |||
Longjoin Photocells have multi-certifications:UL/CE/LVD
You can Click the Picture to Check the Certification Page to Confirm:
Disconnect power; wire the Street Light Dimming Receptacle according to the diagram below. An arrow indicating NORTH on the top of the Receptacle is used to assist correct direction. Push the photocontrol on and turn it clockwise to lock into the receptacle.
Adjust the Receptacle position if necessary.
JL-240Y series supports tool-free rotation.
JL-240Z series supports Wall-mount and rotation.
