Intend to short a twist-lock photocontrol receptacle while under
maintain
Easy-to-maintain Twist-lock(ANSI C136.10)
IP66 body protection
IP65 while installed with recognized receptacle
UV stabilized Polycarbonate Enclosure
UV stabilized Polybutylene Base

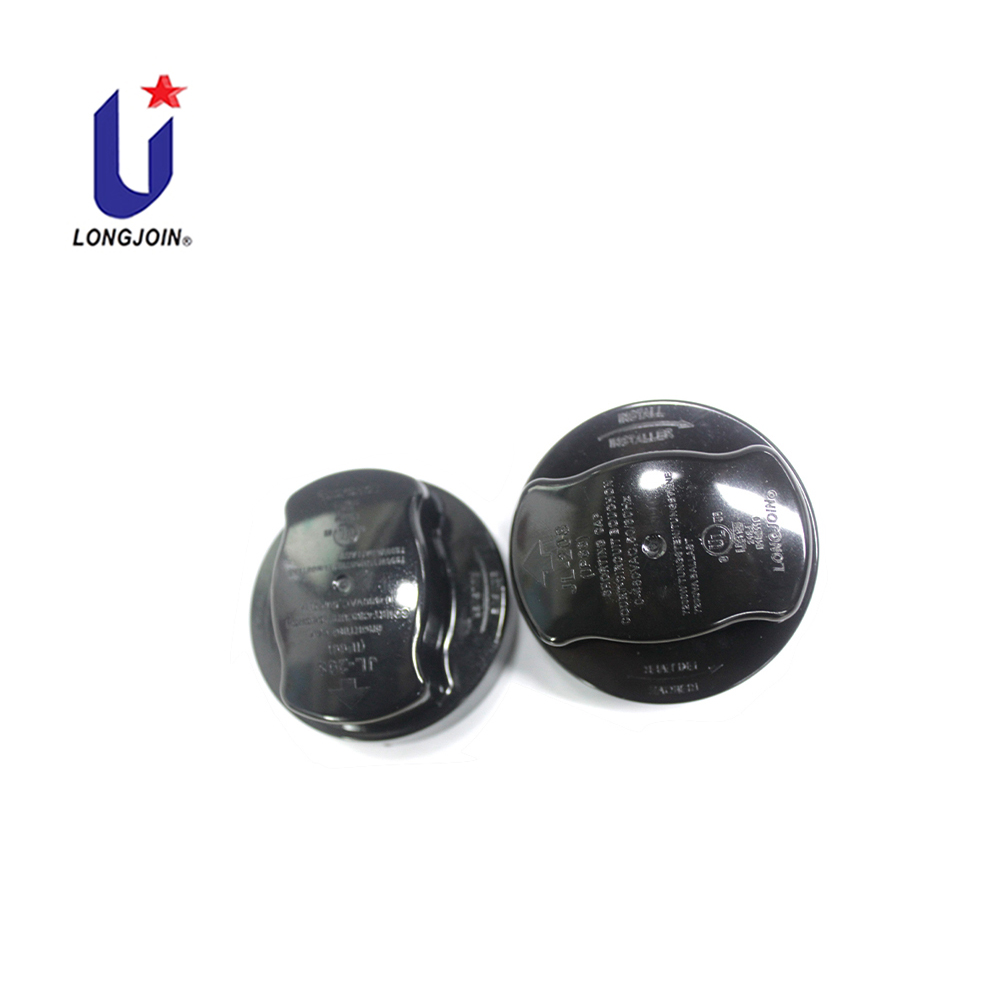

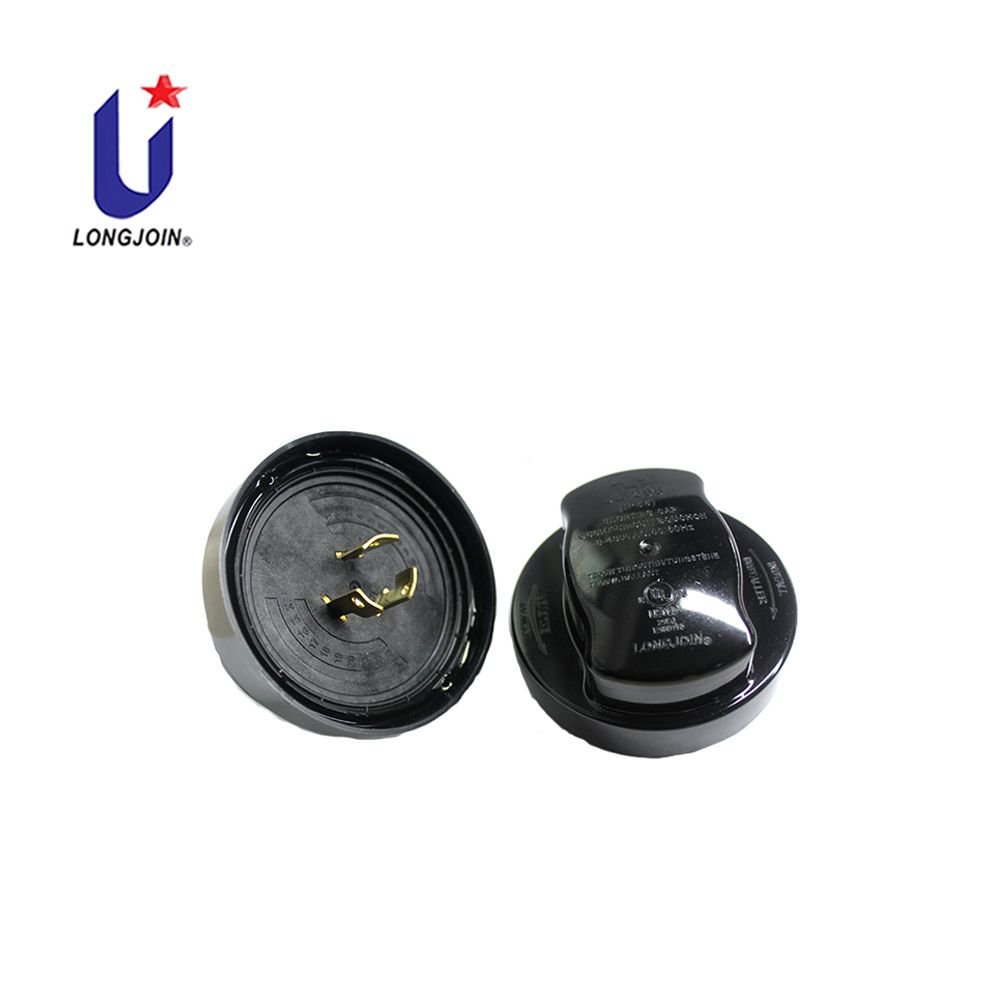

Product Summary
This product provides twist lock terminals meeting the requirements of
ANSI C136.10-2010 and the Standard for Plug-In, Locking Type Photocontrols
for Use with Area Lighting UL773
Can be used with a receptacle meeting ANSI C136.41-2013
-Product Features
- Intend to short a twist-lock photocontrol receptacle while under maintain
- Easy-to-maintain Twist-lock(ANSI C136.10)
- IP54/IP66 protection while installed
- Surge Protection Available (JL-208 Only)
- UV stabilized Polycarbonate Enclosure
- UV stabilized Polybutylene Base

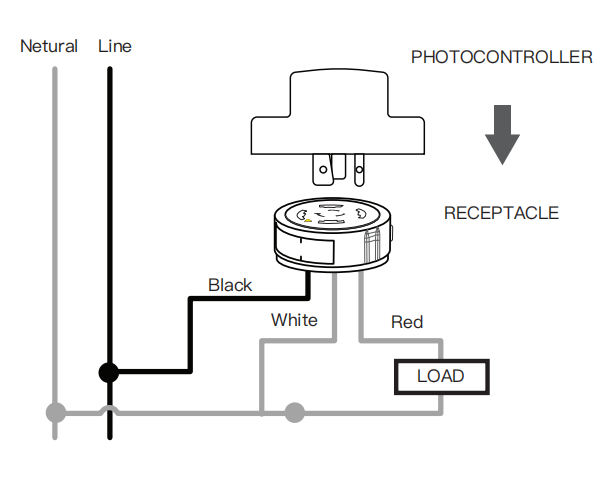

-Product Diagram-
-Product Parameters-
| Model No. | Cap Color | Rated load | Surge Protection | Certificate |
| JL-208 | Black | 7200W Tungsten 7200VA Ballast | - | UL,CUL Listed |
| JL-208-15 | 235J / 5000A | |||
| JL-208-23 | 460J / 10000A | |||
| JL-209 | Red | - | - |
Disconnect power; wire the receptacle according to the diagram in above.
Push the SHORTING CAP on and twist it clockwise to lock it into the receptacle.
Turn on the power and verify the lamp turned on.
