The led dawn to dusk outside lights JL-202 series is applicable to control the street lighting, garden lighting, passage lighting and doorway lighting automatically in accordance with the ambient natural lighting level.
This product is designed on the basis of thermal - bimetallic structure that provides time delay over 30 seconds to avoid mis-operation due to spotlight or lightning during the night time. A temperature compensation system provides consistent performance regardless to the ambient temperature.
This product provides three twist-lock terminals meeting the requirements of ANSI C136.10-1996 and the Standard for Plug-In, Locking Type Photocontrols for Use with Area
JL-202 Customzied Photocontroller Manufacturer
Product Features
-ANSI C136.10-1996 Twist Lock
-Time Delay 30~120 seconds
-Temperature compensated
-Various Enclosures
-Lightning Arrester Available
-1” Photocell Deluxe Version Available

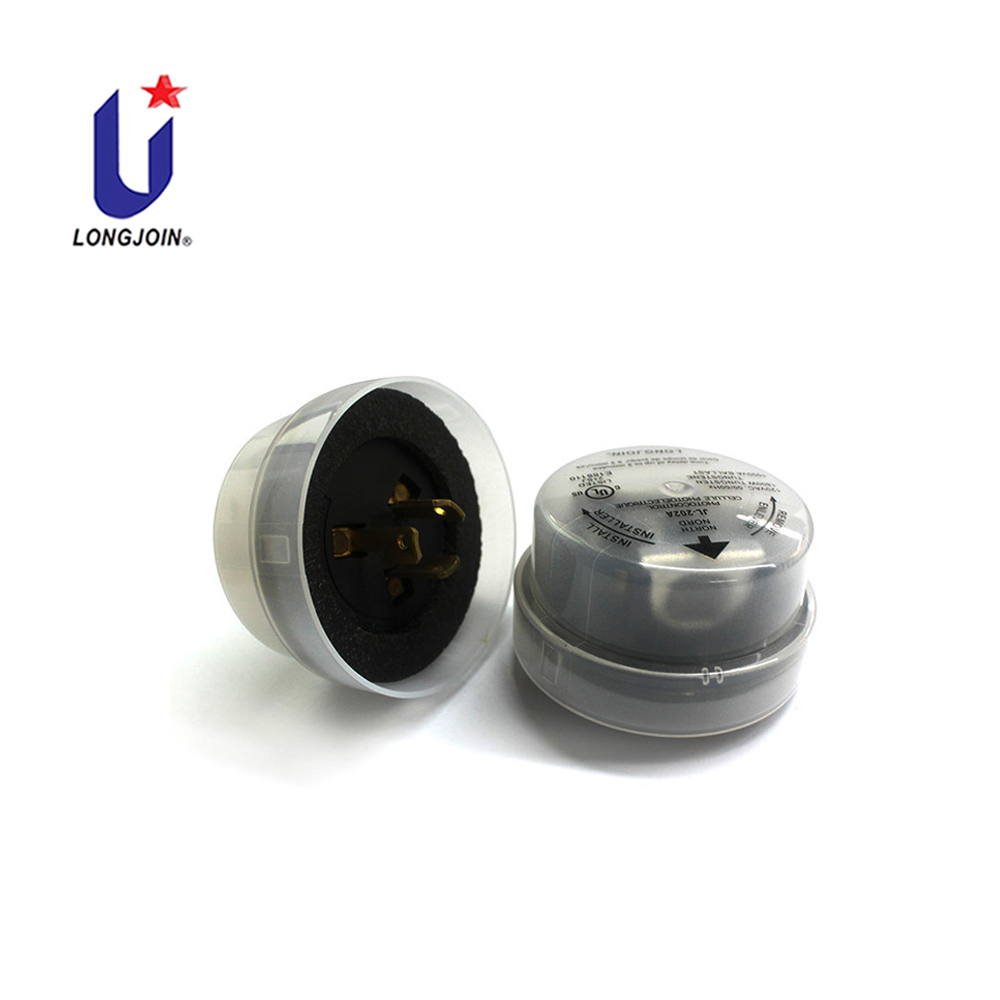

Product Display
| Model No. | JL-202A | JL-202B | JL-202C | JL-202D |
| Nominal Rated Voltage | 110-120VAC | 220-240VAC | 208VAC | 277VAC |
| Applicable Volt Range | Nominal +/-10% | |||
| Rated Frequency | 50/60Hz | |||
| Rated Loading | 1800W Tungsten, 1000VA Ballast | |||
| Power Consumption | 1.5VA (Average) | |||
| Standard Operate Level | 10~20Lx On, 30~60Lx Off | |||
| Photocell Size**** | 0.5” with heat sink (Standard) / 1” (Deluxe) | |||
| Ambient Temperature | -40℃ ~ +70℃ | |||
| Related Humidity | 99% | |||
| Overall Dimensions (mm) | Null: 74dia.x 50 (Clear) / M: 74dia.x 60 / H: 84dia.x 65 | |||
| **Enclosure Color (M/H) | Gray Maroon Blue or Client Request | |||
| **Clear Enclosure (Null) | Available | |||
| Weight Approx. | 62~90grs | |||
Product Materials:
Enclosure & Lens – High impact UV stabilized Polycarbonate
Base – High impact Polybutylene terephthalate
Photocell – Cadmium Sulfide 0.5” with heat sink (Standard) / 1” (Deluxe)
Ordering Information:
*JL-202B - **M - ***12-****U
*: The Model Number;
**: Enclosure Size:
Null = 74dia.x 50mm;
M = 74dia.x 60mm;
H = 84dia.x 65mm.
***: MOV diameter in mm:
12 = 110Jole / 3500Amp;
15 = 235Jole / 5000Amp;
23 = 460Jole / 7500Amp.
****: Photocell Options:
Null = 0.5” photocell with heat sink
U = 1” photocell Deluxe Version

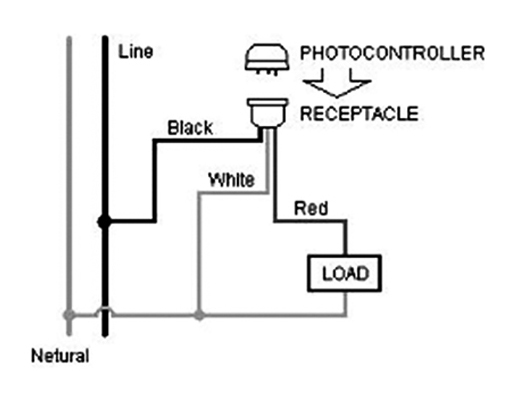

Disconnect power; wire the color coded receptacle according to the diagram below.
Push the photocontroller on and twist it clockwise to lock it into the receptacle.
Install the photocontroller with the Photocell facing the NORTH direction as indicated on the top of the photocontroller.
Adjust the receptacle position if necessary.
It is normal for the SWITCH to take several minutes to turn off when first installed.<br>
To test “turn on” during daytime, cover its eye with sliding the metal strip mounted.<br>
Do not cover with finger because light traveling through fingers may be great enough to keep the switch open.<br>
Test will take approximately 2 minutes.
