JL-103-Dusk-Till-Dawn-Sensor

Rate voltage:

Lead Classification:

150℃

105℃

Lead Direction:

Lead holes on the largest wall

Lead holes on the smallest wall

Other Options:

Couple lock-nuts (Null = One lock-nut offered)

UL holographic label applied (Null = No UL label applied)

Neoprene gasket for outdoor use (Null = Foam plastic gasket for indoor use)

Hexagonal lock-nut (Null = Ring lock-nut)

Aluminum Wall plate (Fig. W）

Shielding cap enclosed (Fig. S)

Filter Cap enclosed (Fig. F)

Extra-long window thread not available with option P (Null = Standard 20mm thread)

Length:

Customizable

Product code

******

Download Product Specifications

Ordering Information

JL-103A 09 G P / L M N H W S F 25

*:Model Number

Model =JL-103

**:Lead Length (in inches)

G=150℃

Null=105℃

***:Lead Classification

G=150℃

Null=105℃

****:Lead Direction

Null=Lead holes on the largest wall

P=Lead holes on the smallest wall

*****:Other Options

L=Couple lock-nuts (Null = One lock-nut offered)

M=UL holographic label applied (Null = No UL label applied)

N=Neoprene gasket for outdoor use (Null = Foam plastic gasket for indoor use)

H=Hexagonal lock-nut (Null = Ring lock-nut)

W=Aluminum Wall plate (Fig. W）

S=Shielding cap enclosed (Fig. S)

F=Filter Cap enclosed (Fig. F)

25=Extra-long window thread not available with option P (Null = Standard 20mm thread)

Product Summary

The JL-103 dusk till dawn sensor is applicable to control the street lighting, passage lighting and doorway lighting automatically in accordance with the ambient lighting level.

This dusk till dawn sensor has been listed by UL Inc and is comply with the Standard for Non-industrial dusk till dawn sensor for Lighting Control UL773A.

Technical Data

JL-103 Dusk till Dawn Sensor Outdoor Lighting Control

Features

-Applicable to Control the Outdoor Lighting

-Listed by UL Inc

-Comply With the Standard Lighting Control UL773A.


Model No.	JL-103A	JL-103B	JL-103C	JL-103D
Rated Voltage	120VAC	240VAC	208VAC	277VAC
Rated Frequency	50/60Hz
Rated Loading	500W TUNGSTEN;850VA BALLAST
Power consumption	1.2W max.
Operate Level	10~20Lx On ;30~60Lx Off
Ambient Temperature	-40℃ ~ +70℃
Related Humidity	99%RH
Overall Dimensions	52.5(L) x 29(W) x 42(H)mm
Leads Length	180mm or Customer request (AWG#18)
Weight Approx.	32grs

Optional Accessories

1.Waterproof Cap -S
Intended to double protect the dusk till dawn sensor lens. It helps the dusk till dawn sensor to work better against hard environment.

2.Filtering Film -F
Intended for field adjusting preset On/Off levels with Waterproof Cap. It offers performance with earlier

turning-on and later turning-off.

3.Wall Mount Plate -W
Intended for wall mounting.

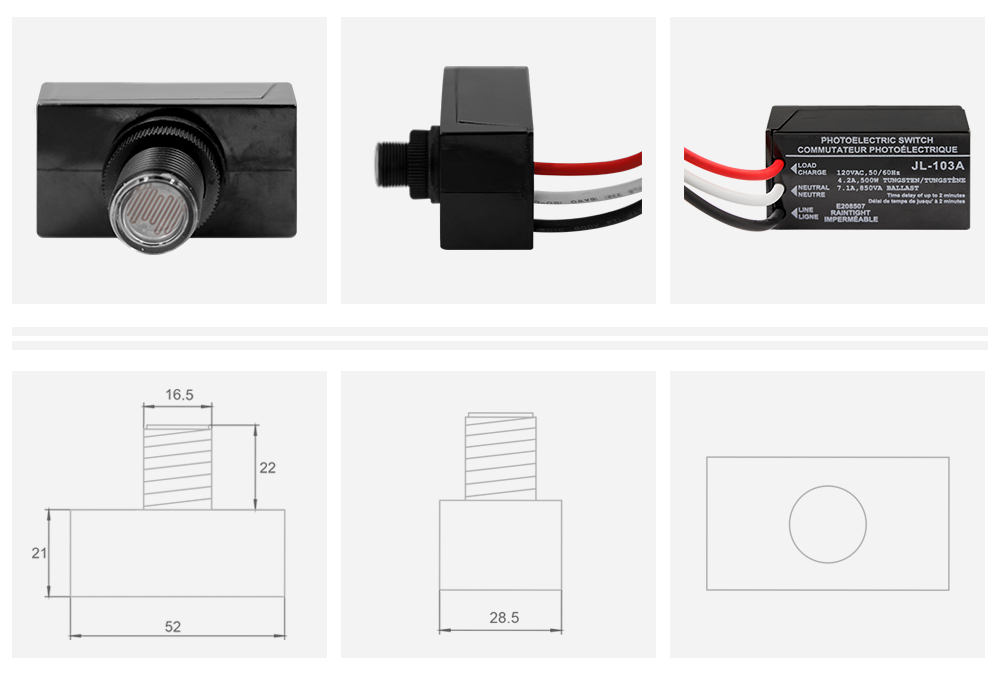

photoelectric outdoor lighting controlsjl 103.jpg

photoelectric outdoor lighting control jl103.jpg

Installation

Initial Testing

Disconnect power, remove junction box cover, place the dusk till dawn sensor in knockout hole and fasten with locknut.

Wire according to the diagram in right hand.

Do not install the switch with the dusk till dawn sensor facing artificial or reflected light. This will cause the unit to cycle on and off at night.
