The Dusk to Dawn Photocell Switches JL-103 is applicable to control the Outdoor Lighting, Passage Lighting and Doorway Lighting automatically in accordance with the ambient lighting level.
This product has been listed by UL Inc and is comply with the Standard for Non-industrial Photoelectric Switches for Lighting Control UL773A.
JL-103 Photoelectric Outdoor Lighting Control
Features
-Applicable to Control the Outdoor Lighting
-Listed by UL Inc
-Comply With the Standard Lighting Control UL773A.
| Model No. | JL-103A | JL-103B | JL-103C | JL-103D |
| Rated Voltage | 120VAC | 240VAC | 208VAC | 277VAC |
| Rated Frequency | 50/60Hz | |||
| Rated Loading | 500W TUNGSTEN;850VA BALLAST | |||
| Power consumption | 1.2W max. | |||
| Operate Level | 10~20Lx On ;30~60Lx Off | |||
| Ambient Temperature | -40℃ ~ +70℃ | |||
| Related Humidity | 99%RH | |||
| Overall Dimensions | 52.5(L) x 29(W) x 42(H)mm | |||
| Leads Length | 180mm or Customer request (AWG#18) | |||
| Weight Approx. | 32grs | |||

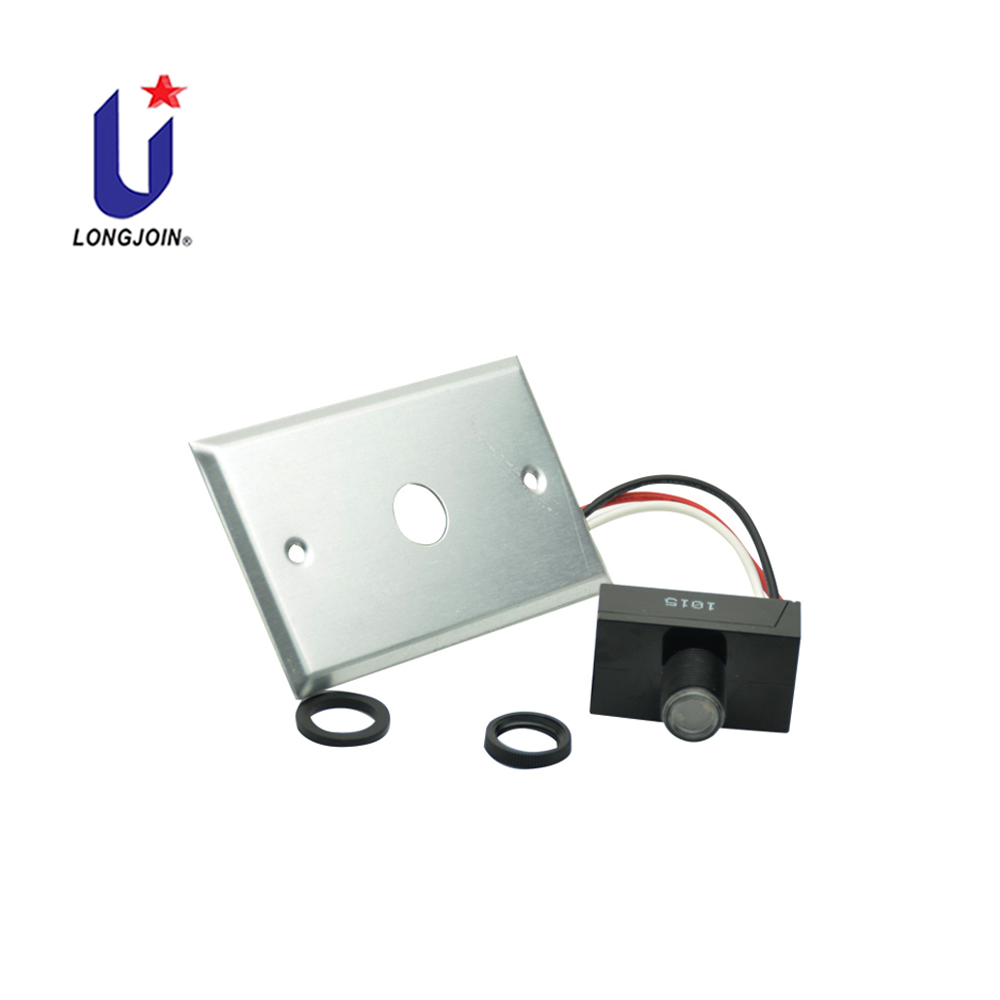

Optional Accessories
1.Waterproof Cap -S
Intended to double protect the sensor lens. It helps the switch to work better against hard environment.
2.Filtering Film -F
Intended for field adjusting preset On/Off levels with Waterproof Cap. It offers performance with earlier
turning-on and later turning-off.
3.Wall Mount Plate -W
Intended for wall mounting.
Disconnect power, remove junction box cover, place the SWITCH in knockout hole and fasten with locknut.

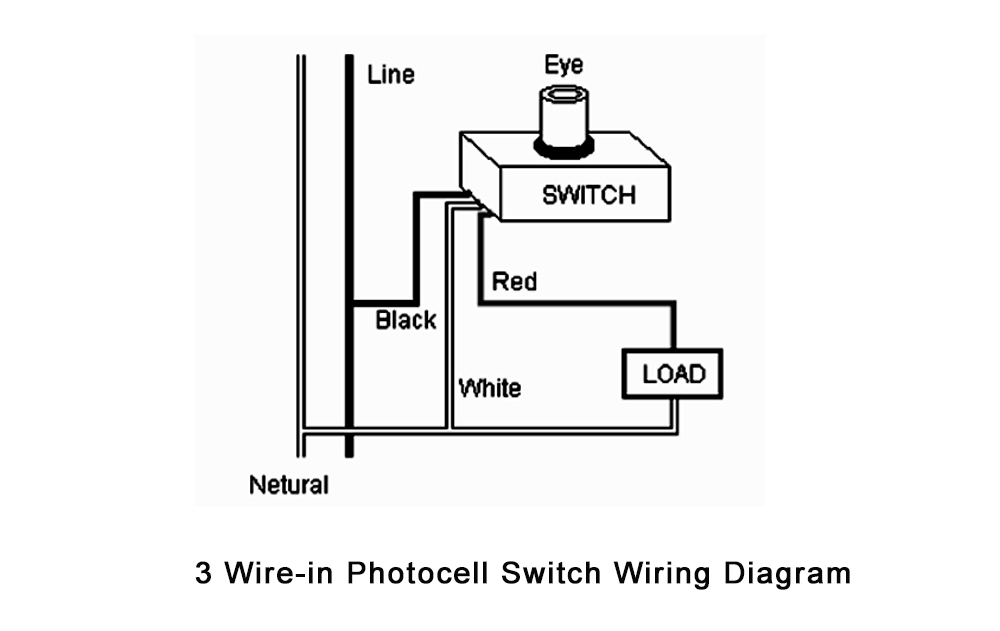

Wire according to the diagram in right hand.
Do not install the switch with the Photocell Switch facing artificial or reflected light. This will cause the unit to cycle on and off at night.
