ZHAGA

741J base

The Shanghai longjoin wireless controller housing kit is based on the 700 interface and is mainly used for energy-saving lighting control and other controller products with built-in electronic products. The power connection uses a standard Zhaoga plug; The signal connection uses tin plated copper sheets to ensure stable transmission and achieve intelligent control of lighting equipment.

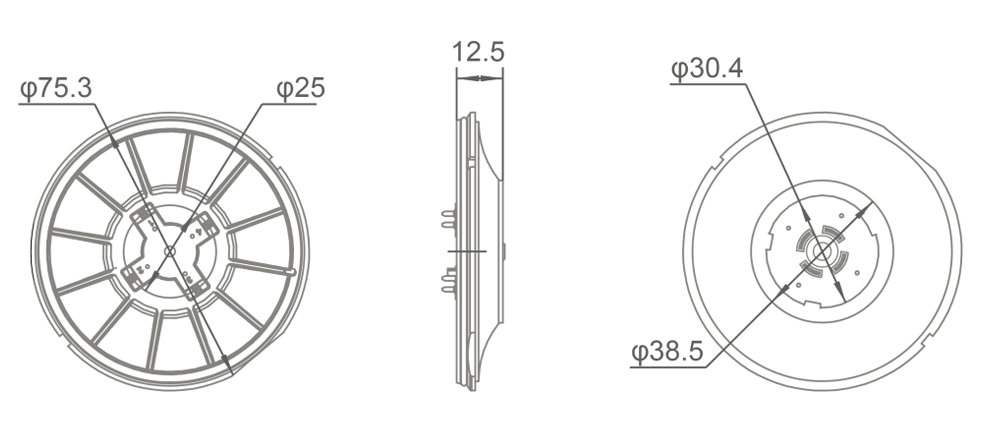

Product size

MetInfo enterprise content manager system | MetInfo CMS

Supporting shell components

MetInfo enterprise content manager system | MetInfo CMS

Model

741J

Rated Voltage

Maximum 30VDC

Applicable current

Maximum 1.5A

Material

PBT with 30% glass fibre (UL94 V-0 rating)

Terminal Material

Brass 0.8mm thick, tinned

Working Temperature

-40℃~ + 70℃
