JL-472CCR is a Built in wired dual channel controller developed based on 4G (LTE Cat. 1) communication mode, Each channel can be remotely controlled independently, configuration, and real-time monitoring of operating status. The product has a compact size Built in high-performance antenna and is easy to install inside the lamp head or in the maintenance hole of the lamp post. The product is internally glued with a protection level of IP67.

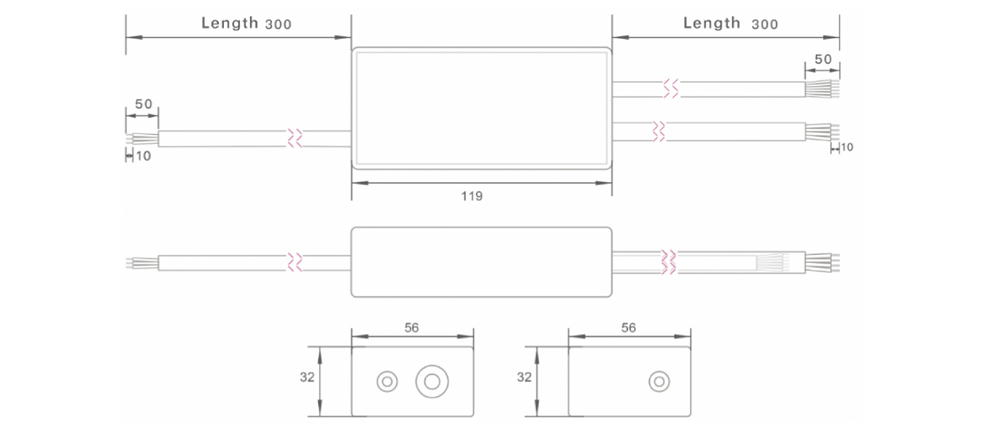

Product size
Product Features
85~300VAC wide voltage input
Dual switch, dual 0-10V dimming
Zero crossing switch, Over 60000 cycles of ultra-high switch lifespan
6KV/3KA surge protection, Capable of diagnosing lightning protection failures
Undervoltage/overvoltage/overcurrent/leakage/lightning protection fault self inspection reporting and protection
Dimming ratio self-test
Class2.0 measurement accuracy (voltage/current/power/power factor/cumulative energy consumption)
RS485 peripheral expansion capability, such as lamp pole tilt/water immersion, etc
Support latitude and longitude strategy/holiday strategy/time control strategy
Power off RTC can be maintained for about<7 days
Fail on failure mode
119*56*32mm ultra small size
eSIM
IP67
OTA
Power supply | Rated: 100~277VAC；50/60Hz Limit: 85~300VAC；47/63Hz |
Dimming output | Dual way 0-10VDC |
Wireless communication | 4G（LTE Cat.1），Internal Antenna Frequency band：LTE-FDD：B1/B3/B5/B8 LTE-TDD：B34/B38/B39/B40/B41 |
Carrying capacity | Both ways are equal ≤5A |
Device power consumption | Static:1.2W Dynamic peak: 3W |
Working environment temperature | -35~85℃ |
Working environment humidity | 5%RH~99%RH |
Shell protection | IP67 |
Standard | IEC61000-4-2；IEC61000-4-3；IEC61000-4-6；GB/T 17743-2017；IEC61000-4-4；IEC61000-4-11；IEC61000-3-2；GB/T 2423.10；GB/T2423.10-2008；UL94-V0；GB/T 20138-2006；GB/T 5169.11；GB/T 4208；GB/T17743-2021；GB 17625.1-2022 ；GB 17625.2-2007；GBT 17626.5-2019；GB/T 17626.2-2018；GB/T 17626.6-2017；GB/T 17626.3-2016 ；GB/T 17626.4-2018；GB/T 17626.11-2023；GB/T 17626.8-2006 |
Size | 119*56*32mm |
Weight | 0.3KG |
