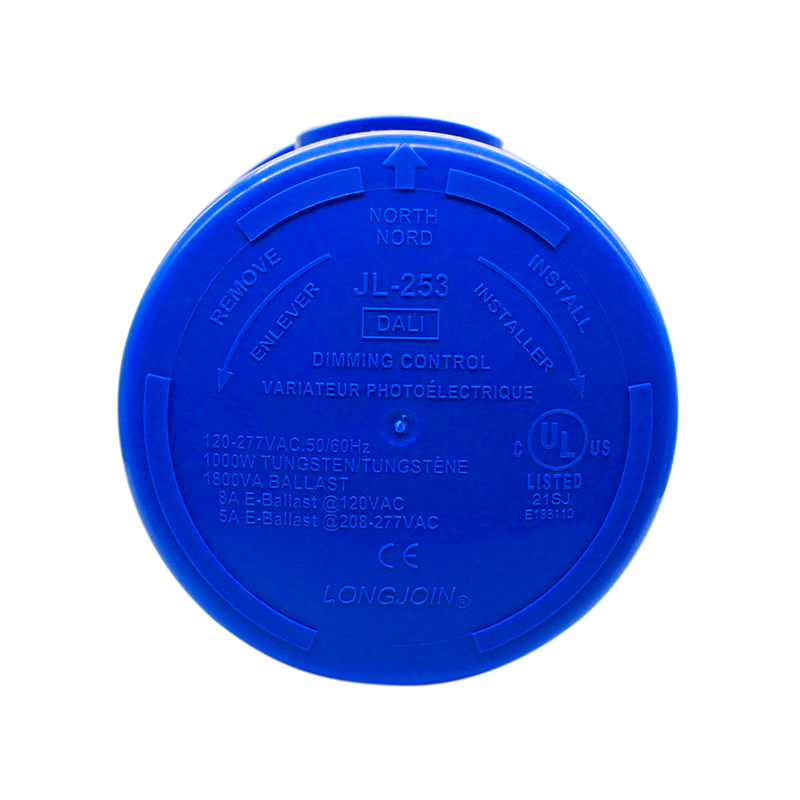

JL-253(DALI, Constant illumination, Midnight night,Optical decay compensation )

The dimming photocontrol JL-251/252/253 series is applicable to control the dimmable LED street lighting (DALI) automatically in accordance with the ambient natural lighting level.
This product is designed with microprocessor circuits with IR-filtered phototransistor.
A heavy duty surge arrester (MOV) is provided to protect the lamp from inrush current as well as impulse by lightening.
Further, a preset 10 seconds time-delay prevents excessive operation due to spotlight or lightning during the night time.
It provides constant reliability as the relay has sufficient work life of over 10,000 cycles, and offers extra long work life when a sandwich cover option is applied together.
This product provides twist lock terminals meeting the requirements of ANSI C136.41 as well as being listed by UL under the Standard for Plug-In, Locking Type Photocontrols for Use with Area Lighting ANSI/UL773.

Product size

MetInfo enterprise content manager system | MetInfo CMS

Product Features

  • ANSI C136.41 Twist-lock

  • DALI Dimming

  • MOV 40kA Surge Arrester Built-in

  • Optional Sandwich cover for Long Life

  • Multi-Volts Application

  • IP65 Ready / IP67 Optional

  • IR-filtered Phototransistor

  • Constant On/Off Dimming

  • Midnight Dimming

  • LED Decay Compensation

Model No.

JL-253C

Rated Voltage

120~277VAC

Applicable Voltage Range

105~305VAC

Rated frequency

50/60Hz

Dimming Output

DALI

Spectral Acquisition Range

350~1100nm;Peak wavelength 590nm

Rated Loading

1000W Tungsten, 1800VA Ballast,

 8A e-Ballast @120VAC/

5A e-Ballast @208-277VAC

Operate Levels

Turn-On<100Lx,Turn-Off>100Lx  / per client request

Typical Time Delay

5s

Ambient Temperature

-40°C ~ +70 °C

Related Humidity

96%

Fail Mode

Fail-On

Shell material

PC+PC

High protection

Double Shell

Lightning Protection

4KV/2KA

Surge protection

MYL1-40K511

IP level

IP67

Factory Settings

Illuminance/Delayed/Reduction Duration

Customizable

Certifications
