JL-265CC is a NEMA type single lamp controller developed based on 4G (LTE Cat.1) communication mode, which can be remotely controlled, configured, and monitored for real-time operation status. The product is compact in size and has a protection level of IP66. Suitable for lighting scenarios such as roads, parks, campuses, shopping malls, supermarkets, factories, and parks.

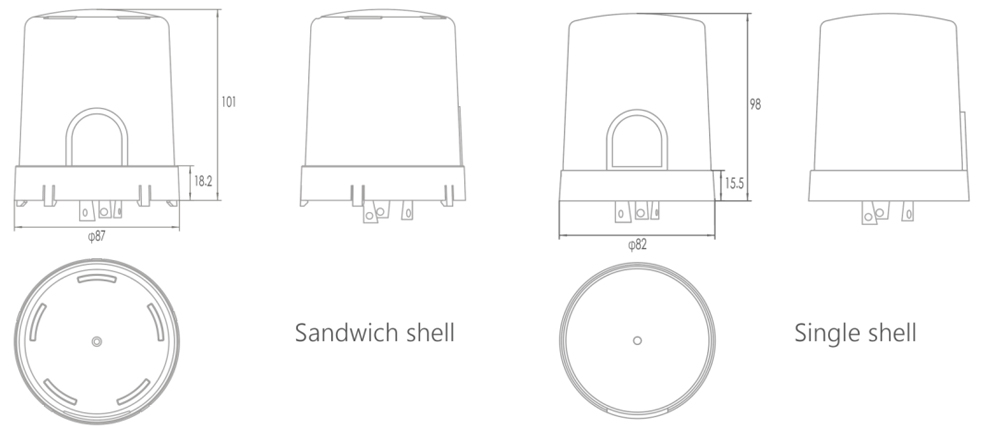

Product size
Product Features
Simultaneously equipped with 0-10V and dali2.0 dimming outputs, automatically identifying drivers suitable for different dimming modes
85-305VAC wide voltage input
9A carrying capacity
Zero crossing switch, switch life>60000 times
6KV/3KA surge protection
Undervoltage/Overvoltage/Overcurrent Fault Self Test Reporting and Protection
CLASS2.0 measurement accuracy (voltage/current/power/power factor/cumulative energy consumption)
Double layered shell, higher structural reliability
External pluggable SIM
IP66
Model No. | JL-265CC |
Power supply | Rated：100~277VAC；50/60Hz Limited：85~305VAC；47/63Hz |
Dimming Output | 0~10VDC |
Wireless Communication | 4G（LTE Cat.1） Bands： LTE-FDD：B1/B3/B5/B8 LTE-TDD：B34/B38/B39/B40/B41 |
Load | ≤9A |
Power Consumption | 1.2W static，2.4W dynamic |
Ambient Temperature | -35~85℃ |
Operating humidity | 5%RH~99%RH |
Surge protection level | 6KV/3KA differential mode |
IP level | IP67 |
Criterion | IEC61000-4-5; IEC61000-4-2; IEC61000-4-3; IEC61000-4-6; GB/T 17743-2017; IEC61000-4-4; IEC61000-4-11; IEC61000-3-2; GB/T2423.10-2008; UL94-V0; |
