Similar to Zhaga Book-18 standard, JL-700M socket is suitable for 0-10V dimming scheme, which is convenient for developing standard equipment suitable for road lighting, regional lighting or residential lighting.
According to the equipment arrangement, these equipment can adopt monitoring, communication, control and other functions based on 0-10V dimming.

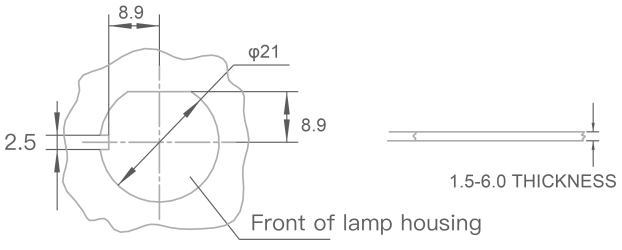

Drilling plan
Product Features
similar to Zhaga Book-18 standard interface, used for 0-10V dimming scheme
small size, suitable for more lamps
advanced sealing, IP66 can be achieved without installing screws
expandable solution: it is allowed to use Φ 40-80mm expansion controller with the same connection interface in the central management system
flexible installation position, which can be installed on the top / bottom / side of the lamp
integrated single gasket to seal lamps and modules to minimize assembly time
Model No. | JL-700M |
Related Humidity | 96% |
Ambient Temperature | -40°C ~ +70 °C |
*Wires | AWM 1015,18/20/22 AWG,105°C AWM 1007,18/20/22 AWG,80°C |
IP | IP66 |
Certifications |
|
*Conductor specification: # 20 conductor has UL certification
