JL-711N zhaga book-18 Zhaga latch controller of JL-7 series


JL-711N is a smart link latch controller developed based on the interface size standard of zhaga book18. It can automatically adjust the light through the local ambient illumination, or realize the dimming through NB IOT remote real-time / strategic mode. The dimming mode supports 0~10v. The controller is suitable for lighting scenes such as roads, industrial mines, lawns, courtyards, parks, parking lots, etc.

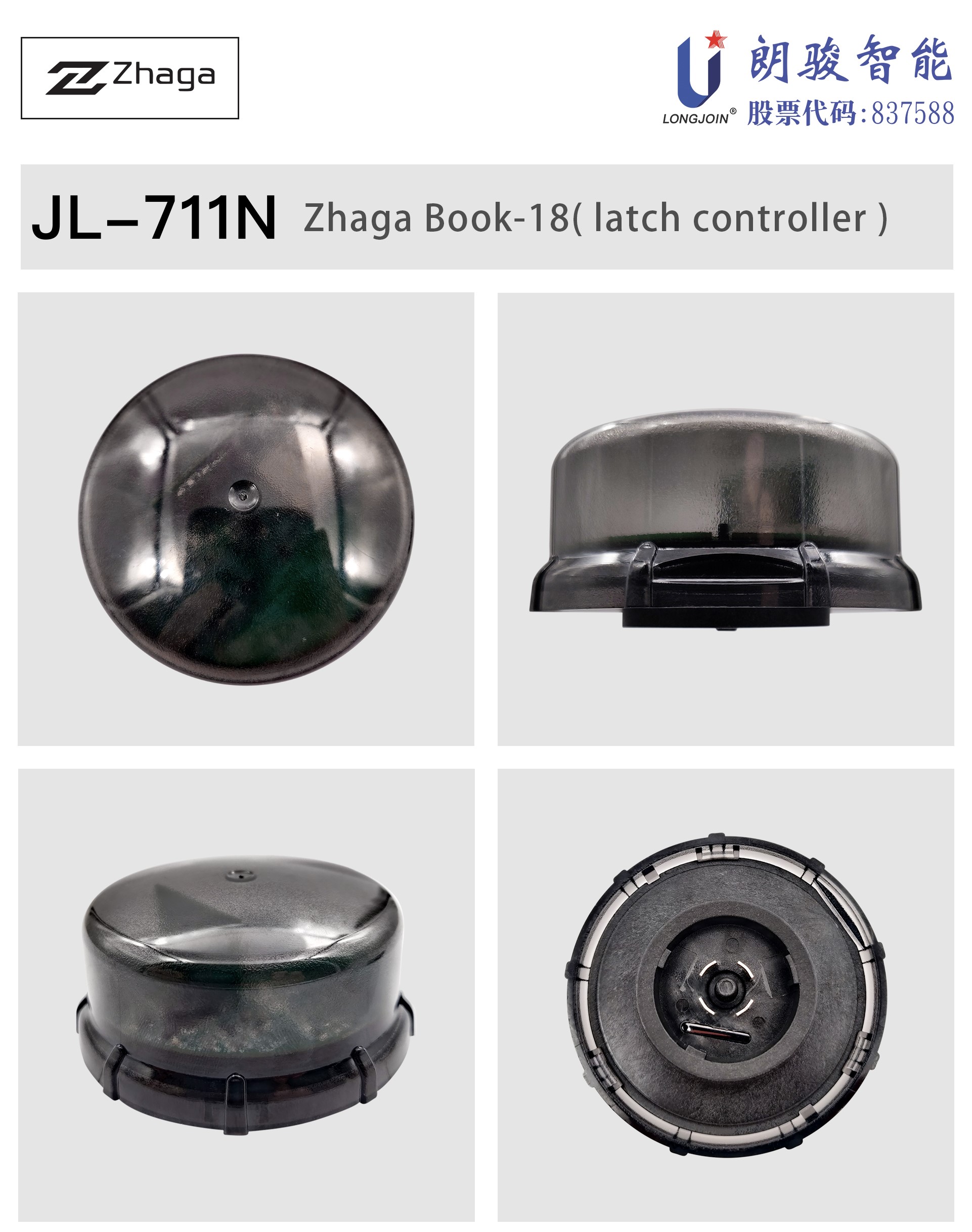

英文版1-JL-711NN 产品图片.jpg

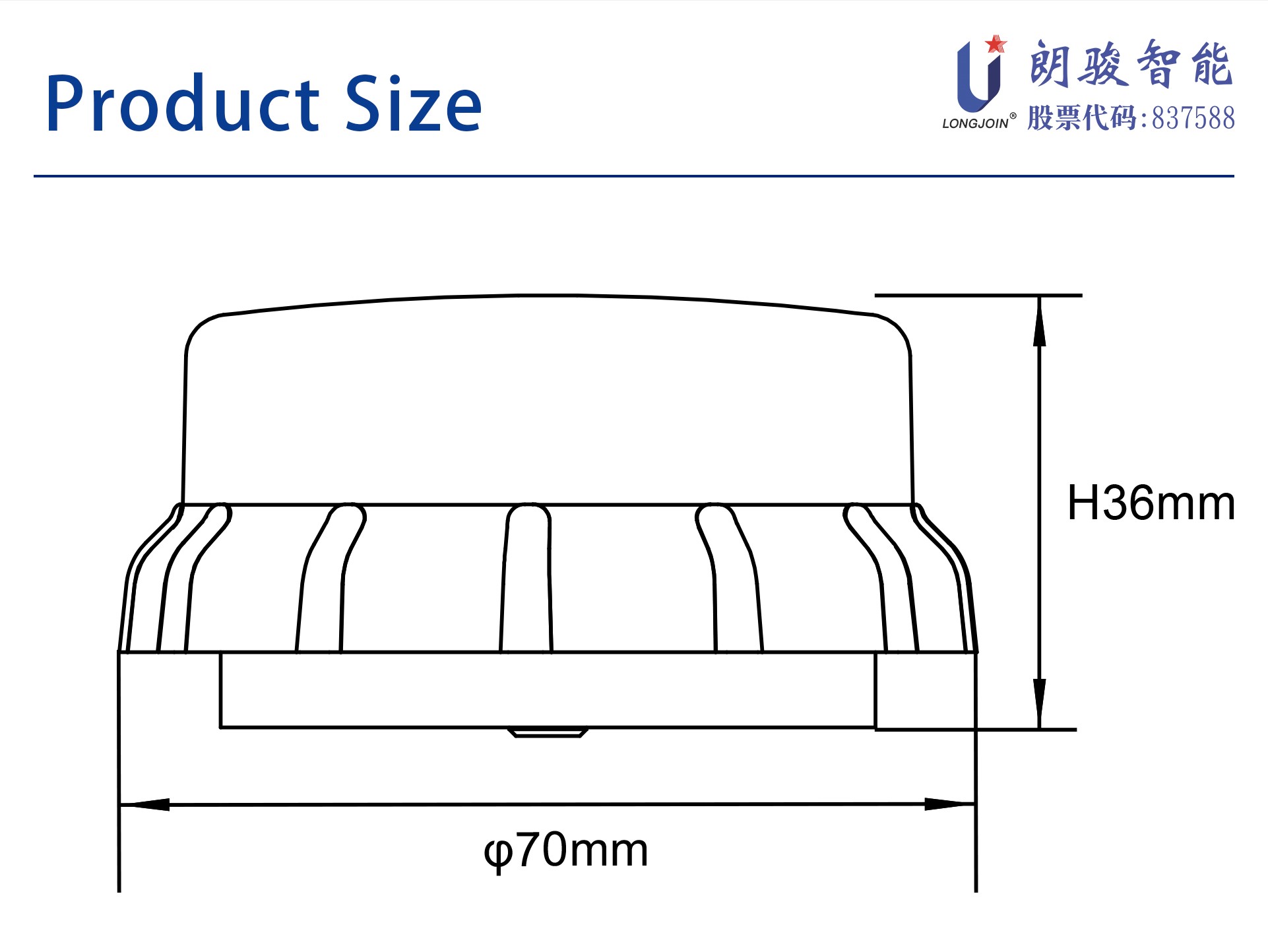

英文版2-JL-711NN 产品尺寸.jpg

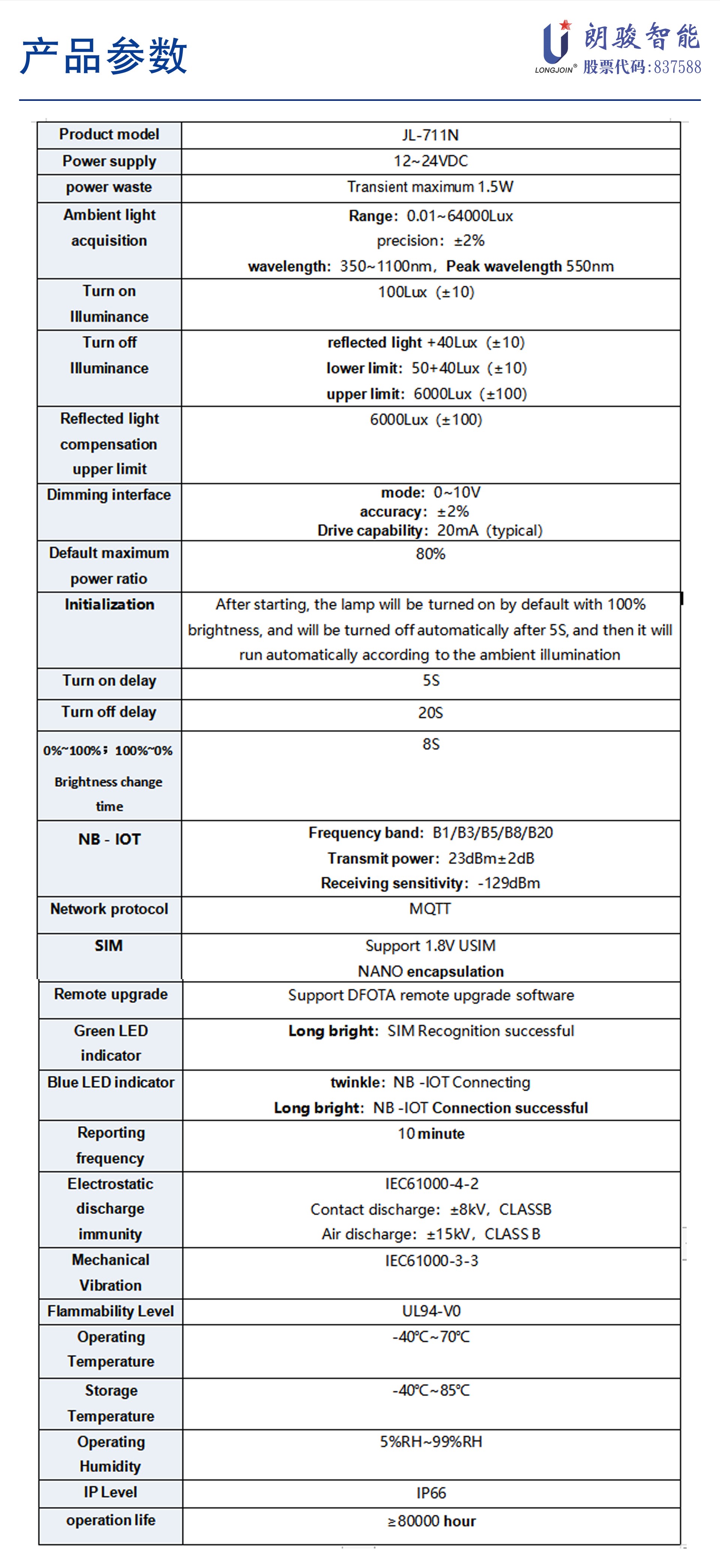

英文版3-JL-711NN 产品参数.jpgProduct Features

*This controller supports NB IOT communication mode, multi band b1/b3/b5/b8/b20, and supports most countries / regions in the world

*Comply with zhaga book18 standard

*DC power supply, ultra-low power consumption

*MQTT network protocol, data encryption

*Integrated light sense, which can automatically adjust the light according to the local environmental illumination

*0.01~64000lux ultra wide ambient illumination collection range, which can be used as urban light pollution collection data

*If the wireless model is abnormal, it will automatically switch to the local light sensing working mode

*Support 0~10v dimming mode (it will not be unable to output to 0V due to the driver dimming pull-up circuit)

*Small size, suitable for installation to all kinds of lamps

*Anti false trigger design of interference light source

*Compensation design of reflected light of lamps

*Support dfota remote upgrade software

*Undervoltage alarm reporting

* RTC

*Waterproof protection grade up to IP66

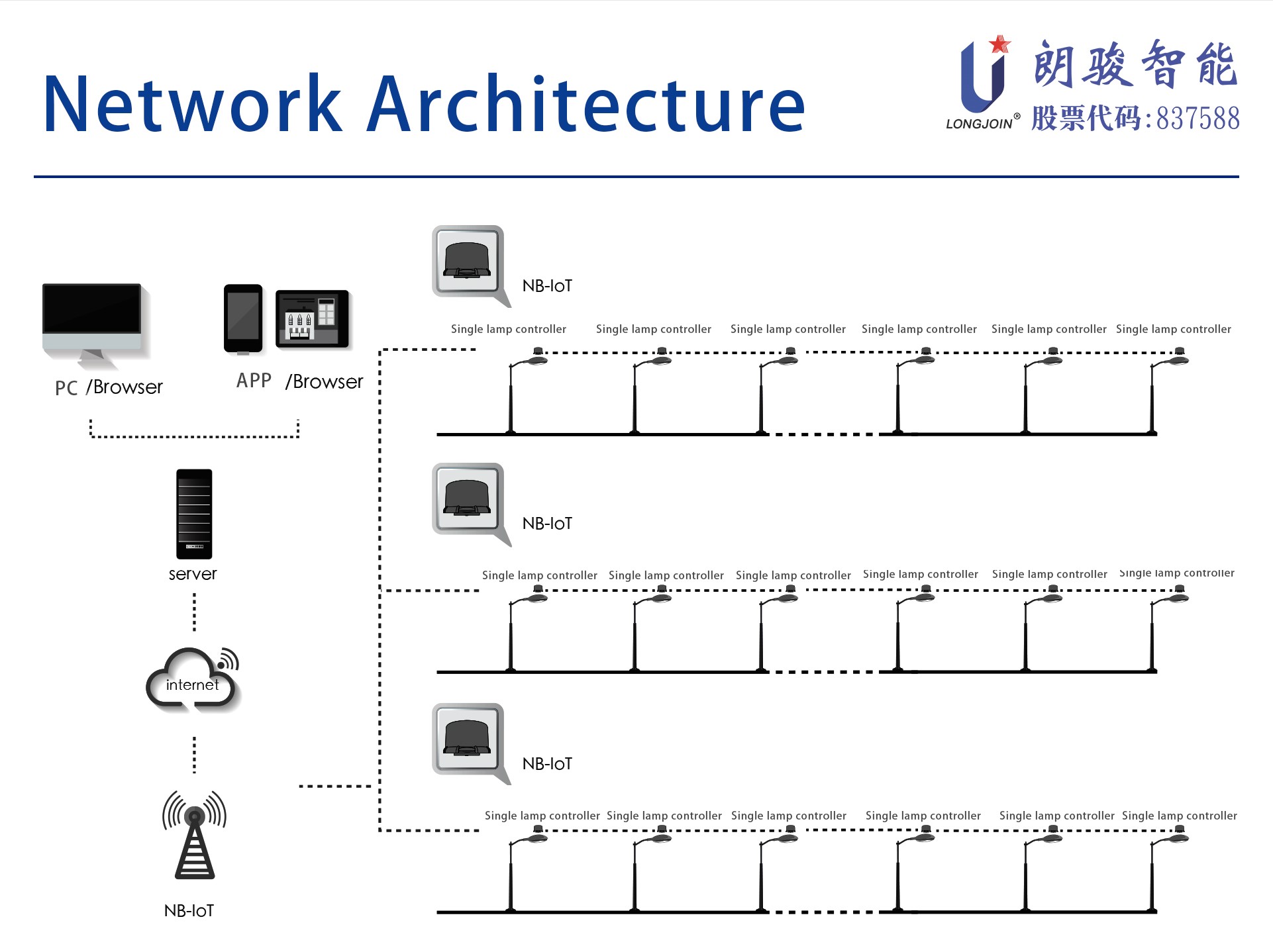

英文版4-JL-711NN 网络架构.jpg

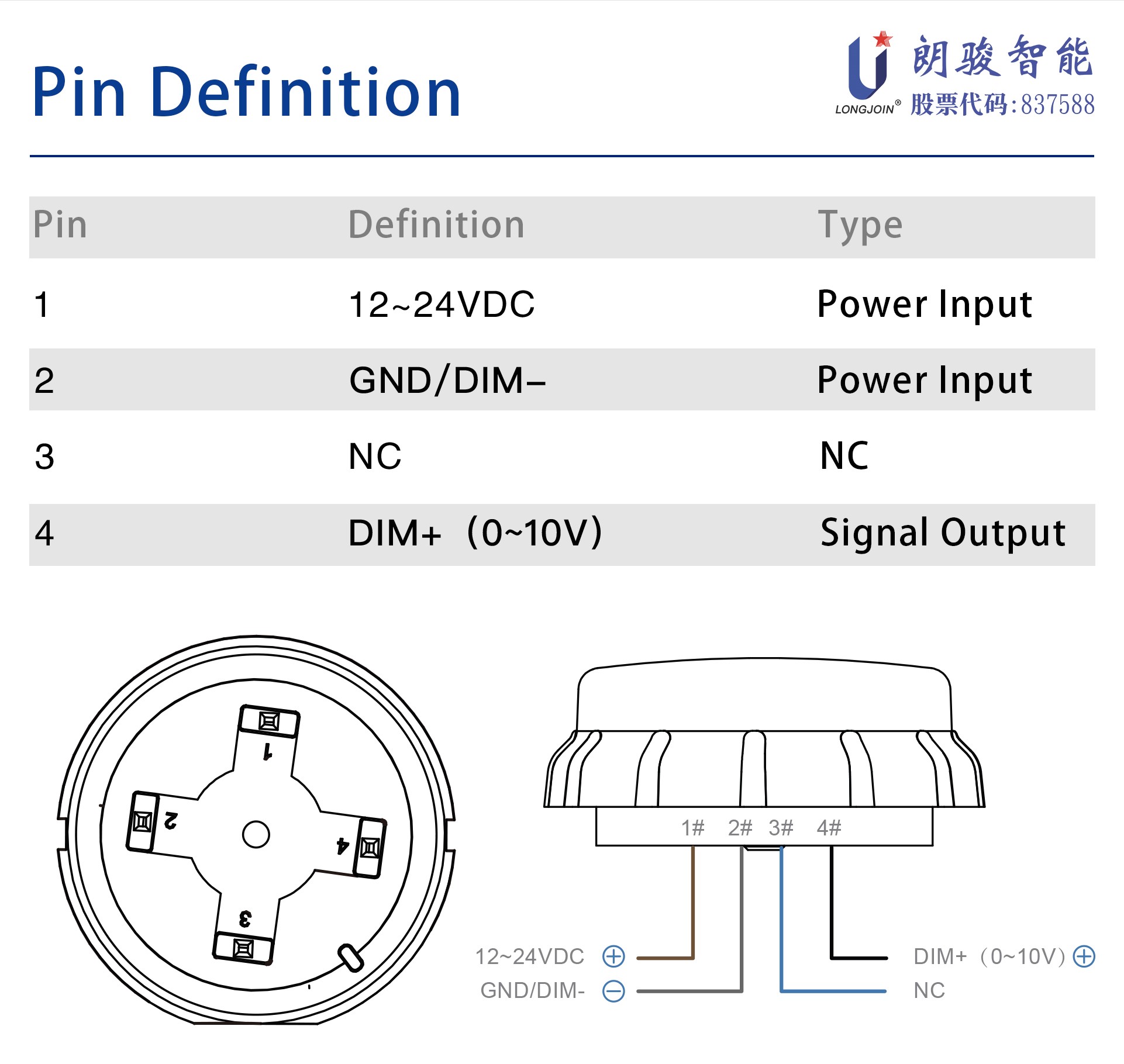

英文版5-JL-711NN 引脚定义.jpg

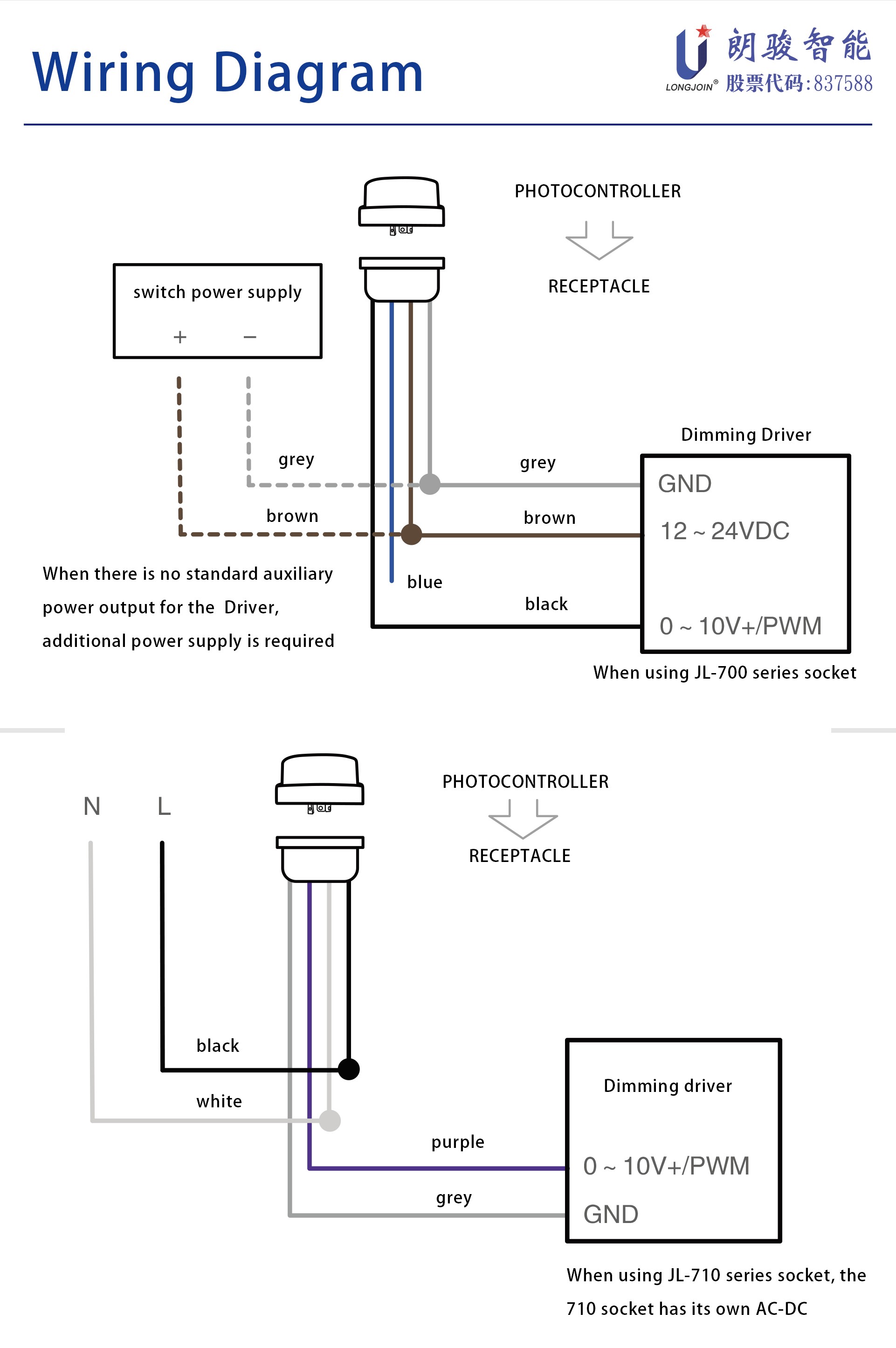

英文版5  -JL-711A 接线示意.jpg

Product Installation

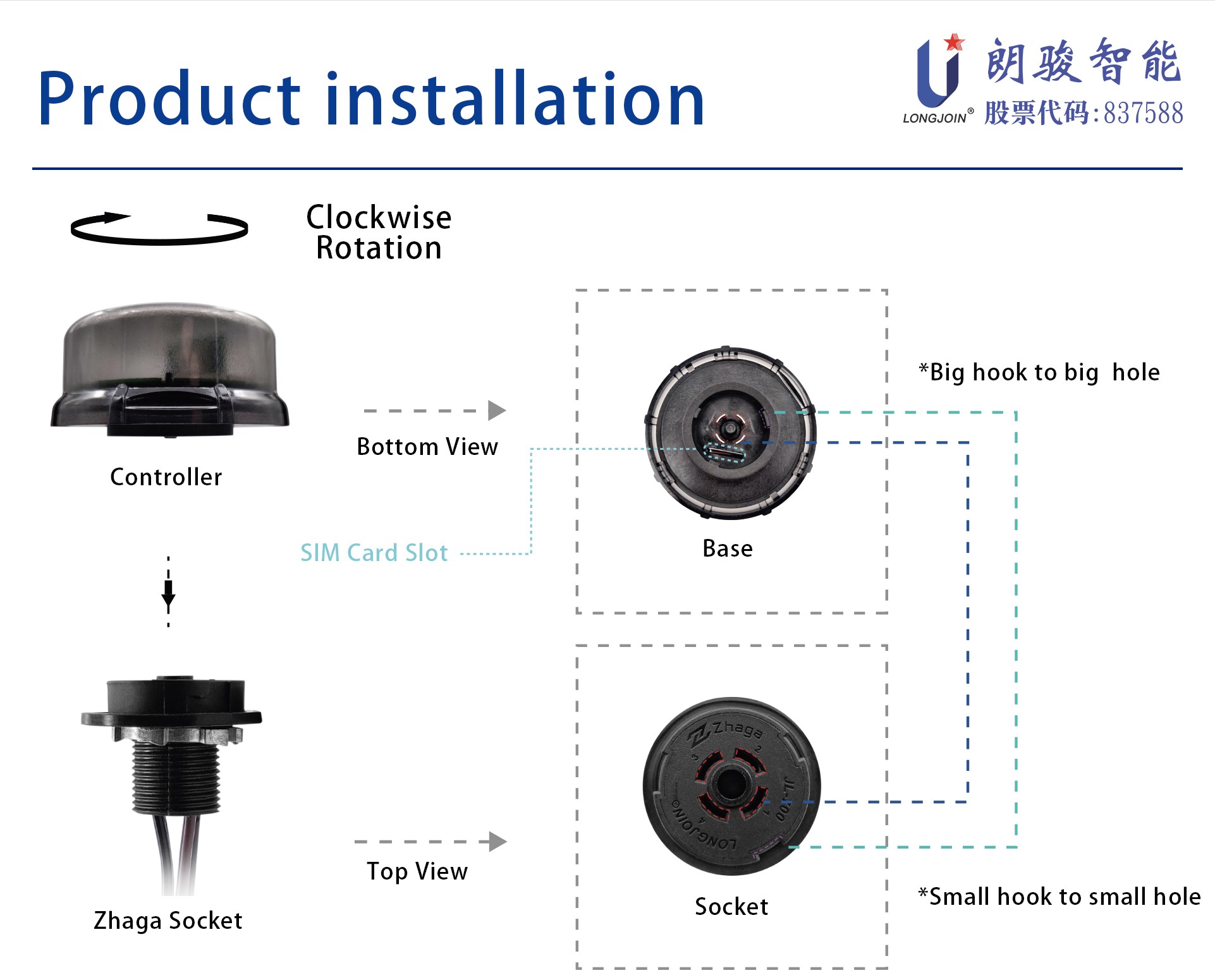

The interface of the product itself has been protected against stupidity. When installing the controller, you only need to screw the controller directly with the base. As shown in the figure below, tighten it clockwise after insertion, and loosen it counterclockwise during removal.


英文版7-JL-711NN 产品安装.jpg

Debugging

*Upload the equipment information through scanning the code of our company's app at the position where the light pole is installed (or upload it in batches through the web in advance)

*After power on, the green LED is always on, indicating that the SIM card has been successfully recognized; The blue LED is always on, indicating that it has been successfully connected to the Nb IOT base station.

*Block the controller to observe whether the self sensitization works normally.

*Observe whether the remote dimming is normal through PC / mobile phone.
